12.92187晶振,KXO-V97有源晶振,Geyer格耶电子晶振
- 频率：30MHz
- 尺寸：7050mm
- 应 用： 12.92187晶振,KXO-V97有源晶振,Geyer格耶电子晶振,具备完善的电磁兼容设计,抗干扰能力优异,可有效抵御工业环境中的电磁干扰,为自动化设备,嵌入式系统提供持续稳定的时钟信号,彰显品牌的技术积淀与品质把控.
-
.png)
.png)

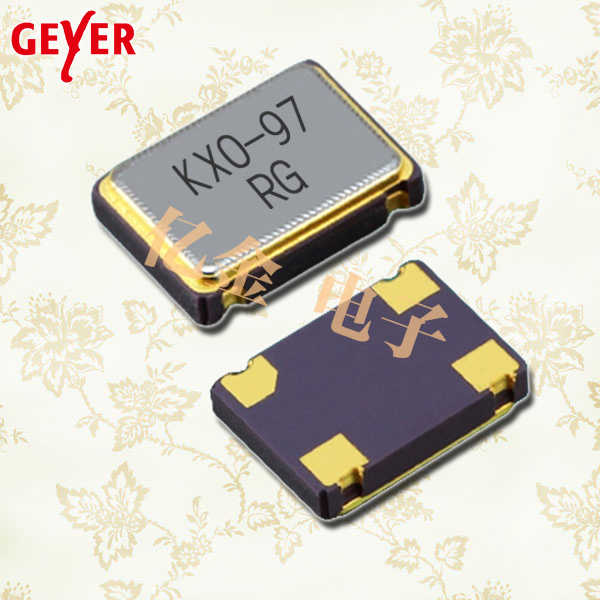

12.92187晶振,KXO-V97有源晶振,Geyer格耶电子晶振
Geyer格耶晶振KXO-V97有源晶振,精准锁定12.92187MHz标称频率,为电子系统提供稳定可靠的时钟基准.作为一款工业级有源晶振,其内置完整振荡电路,无需额外配置起振元件,即插即用大幅简化PCB设计流程.产品具备±50ppm高频稳精度,工作温度覆盖-40℃至+85℃极端环境,可轻松适配工业控制,智能仪表等严苛场景,同时符合RoHS环保标准,兼具性能与绿色属性.
.png)
.png)
12.92187晶振,KXO-V97有源晶振,Geyer格耶电子晶振
| 原厂型号 Originalmodel： | 12.92187 | 品牌brand： | Geyer |
| Manufacturer品牌 | Geyer | OperatingTemperature温度 | -40+85℃ |
| Series型号 | KXO-V97石英晶体振荡器 | Current-Supply(Max) | - |
| Type类型 | XO | PackageHeight高度 | 1.3mm |
| Frequency频率 | 30M | Termination 脚位 | 4-pad |
| 输出方式 Output： | CMOS | PackageType 封装类型 | 4-smd |
| Voltage-Supply电压 | 3.3V | Packaging 包装 | TapeandReel |
| FrequencyStability频率稳定度 | 50PP | 安装方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 7050mm | 最小包装数MPQ： | 1000 |
.png)
.png)
12.92187晶振,KXO-V97有源晶振,Geyer格耶电子晶振
.png)
12.92187晶振,KXO-V97有源晶振,Geyer格耶电子晶振
| 12.87000 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87001 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87002 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87034 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 4 pF | ± 20 ppm |
| 12.87080 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87081 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87083 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87086 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 10 ppm |
| 12.87090 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87095 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 10 ppm |
| 12.87105 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 10 ppm |
| 12.87107 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87109 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12 pF | ± 15 ppm |
| 12.87110 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87111 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87112 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87113 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87114 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87115 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87116 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87118 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87119 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87120 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87121 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87123 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 30 ppm |
| 12.87126 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87127 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 30 ppm |
| 12.87128 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87129 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87130 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87131 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87132 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87133 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87134 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87135 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87136 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87137 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87138 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87139 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87143 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87144 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 5.0 ppm |
| 12.87145 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87146 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 10 ppm |
| 12.87147 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87148 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87149 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87150 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87151 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 30 ppm |
| 12.87152 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87153 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87155 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87157 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87158 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87159 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87160 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87161 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87163 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87164 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 9 pF | ± 30 ppm |
| 12.87165 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87166 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
