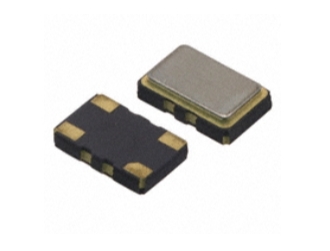

FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源温补晶振
- 频率：14.7456 MHz
- 尺寸：5.00mm x 3.20mm
- 应 用： FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源温补晶振,凭借14.7456MHz标准频率,有源温补特性及5032封装,成为多领域高精度时钟需求的优选,符合全球高精度电子设备的法规要求是一款跨高精度场景的通用型晶振.
-
.png)
.png)

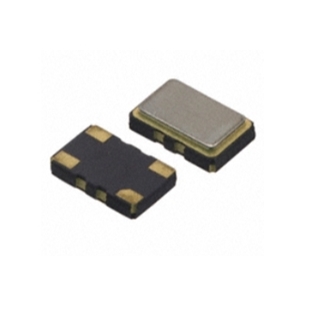

FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源温补晶振
FT5HNBPK14.7456-T1是Fox福克斯品牌推出的高精度有源温补晶振,采用行业通用的5032有源晶振封装(5.0mm×3.2mm),兼顾空间兼容性与安装便利性,可轻松适配工业控制,通信设备等对时钟精度要求高的PCB布局.其核心输出频率精准锁定为14.7456MHz,该频率是串口通信,数据采集等场景的标准时钟频率,能稳定支撑设备基础时序控制.作为有源温补晶振,它内置温度补偿电路与振荡模块,无需外部匹配元件,上电即可输出稳定信号,同时通过温补技术大幅降低温度对频率的影响,解决普通晶振在温度波动下的精度偏差问题,为高精度场景提供可靠时钟保障.
.png)
.png)

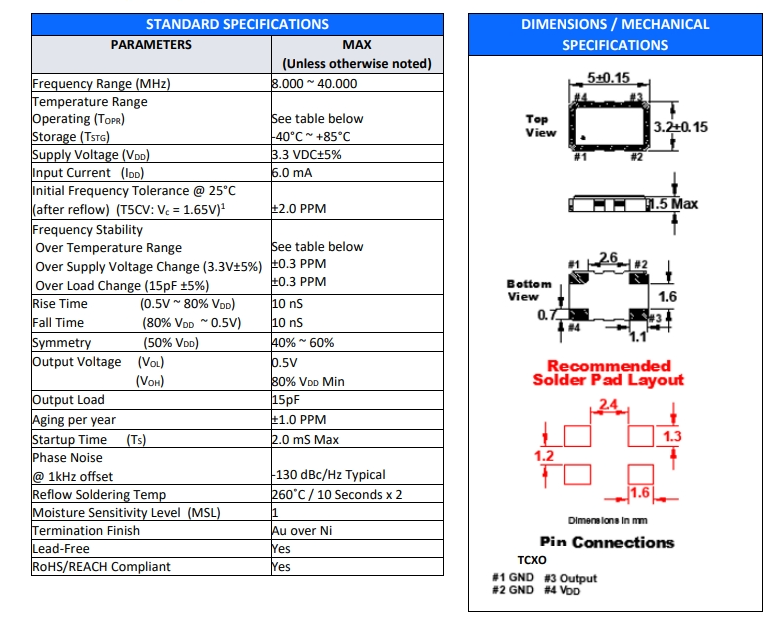

FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源温补晶振
| 原厂型号 Originalmodel： | FT5HNBPK14.7456-T1 | 品牌brand： | Fox Electronics |
| Manufacturer品牌 | Fox Electronics | OperatingTemperature温度 | -30°C ~ 85°C |
| Series型号 | FOX924平板电脑晶振 | Current-Supply(Max) | 6mA |
| Type类型 | TCXO | PackageHeight高度 | 1.50mm |
| Frequency频率 | 14.7456 MHz | Termination 脚位 | 4 pad |
| 输出方式 Output： | HCMOS | PackageType 封装类型 | 4-SMD |
| Voltage-Supply电压 | 3.3V | Packaging 包装 | TapeandReel |
| FrequencyStability频率稳定度 | ±2.5ppm | 安装方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 5.00mm x 3.20mm | 最小包装数MPQ： | 1000 |
.png)
.png)
FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源温补晶振
FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源温补晶振
| FO7HSCBE25.0-T1 | Fox Electronics | F4105 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FT5HNBPK25.0-T1 | Fox Electronics | FOX924 | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK10.0-T1 | Fox Electronics | FOX924 | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.0-T1 | Fox Electronics | FOX924 | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.288-T1 | Fox Electronics | FOX924 | TCXO | 12.288 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK14.7456-T1 | Fox Electronics | FOX924 | TCXO | 14.7456 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK20.0-T1 | Fox Electronics | FOX924 | TCXO | 20 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK27.0-T1 | Fox Electronics | FOX924 | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT9CVDPH20.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO3HSKDM24.0-T2 | Fox Electronics | F310R | XO (Standard) | 24 MHz | HCMOS | 1.8V | ±25ppm |
| FO3HSKDM33.333-T2 | Fox Electronics | F310R | XO (Standard) | 33.333 MHz | HCMOS | 1.8V | ±25ppm |
| FO7HSCAE50.0-T1 | Fox Electronics | F4100 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±100ppm |
| FT5CNDPK12.8-T1 | Fox Electronics | FOX914 | TCXO | 12.8 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT5HNBPK16.0-T1 | Fox Electronics | FOX924 | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HSCBE40.0-T2 | Fox Electronics | F335 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE33.333-T1 | Fox Electronics | F535L | XO (Standard) | 33.333 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK12.0-T1 | Fox Electronics | T3HN | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT3HNBPK27.0-T1 | Fox Electronics | T3HN | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HFCYM0.032768-T3 | Fox Electronics | F32K | XO (Standard) | 32.768 kHz | HCMOS | 3.3V | -170ppm, +10ppm |
| FO5HSCBE25.0-T1 | Fox Electronics | F535L | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE1.8432-T1 | Fox Electronics | O7HS | XO (Standard) | 1.8432 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBE50.0-T1 | Fox Electronics | O7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE25.0-T1 | Fox Electronics | O7HS | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBM50.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE48.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HHAAE1.8432-T1 | Fox Electronics | O7HH | XO (Standard) | 1.8432 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE32.0-T1 | Fox Electronics | O7HH | XO (Standard) | 32 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE50.0-T1 | Fox Electronics | O7HH | XO (Standard) | 50 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE40.0-T1 | Fox Electronics | O7HH | XO (Standard) | 40 MHz | HCMOS | 5V | ±100ppm |
| FT1MNTUM-38.4-T1 | Fox Electronics | FT1MN | TCXO | 38.4 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT3MNTUM-26.0-T1 | Fox Electronics | FT3MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT1MNTUM-26.0-T1 | Fox Electronics | FT1MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-32.0-T1 | Fox Electronics | FT2MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-30.0-T1 | Fox Electronics | FT2MN | TCXO | 30 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FO3HSCBE50.0-T1 | Fox Electronics | F335 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE3.6864-T1 | Fox Electronics | * | - | - | - | - | - |
| FO5HSCBE24.0-T1 | Fox Electronics | F535L | XO (Standard) | 24 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCBE20.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FT3HNBPK25.0-T1 | Fox Electronics | T3HN | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCAE40.0-T1 | Fox Electronics | F4100 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK16.0-T1 | Fox Electronics | T3HN | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCBE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±50ppm |
| FT3HNBPK10.0-T1 | Fox Electronics | T3HN | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HHAAE50.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FO7HHAAE16.0-T1 | Fox Electronics | F3345 | XO (Standard) | 16 MHz | HCMOS | 5V | ±100ppm |
| FO7HSCDE48.0-T1 | Fox Electronics | O7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±25ppm |
| FT5CNDPK20.0-T1 | Fox Electronics | FOX914 | TCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT3MNTUM-32.0-T1 | Fox Electronics | FT3MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT5HNBPK19.44-T1 | Fox Electronics | FOX924 | TCXO | 19.44 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT2MNTUM-40.0-T1 | Fox Electronics | FT2MN | TCXO | 40 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT9CVDPH10.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 10 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO2HSKBM25.0-T1 | Fox Electronics | FO2HS | XO (Standard) | 25 MHz | HCMOS | 1.8V | ±50ppm |
| FO3HSCBE12.0-T1 | Fox Electronics | F335 | XO (Standard) | 12 MHz | HCMOS | 3.3V | ±50ppm |
| FO3HSCBE25.0-T1 | Fox Electronics | F335 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE10.0-T1 | Fox Electronics | F535L | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE16.0-T1 | Fox Electronics | F535L | XO (Standard) | 16 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE48.0-T1 | Fox Electronics | F535L | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE50.0-T1 | Fox Electronics | F535L | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE10.0-T1 | Fox Electronics | F4100 | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±100ppm |
