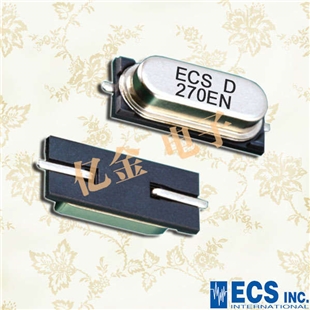

ECS-135.6-20-3X-TR 49SMD 13.56MHz 20PF 30PPM -10~70℃
- 频率：13.56MHz
- 尺寸：7.00mm x 4.10mm
- 应 用： ECS-184-20-3X-TR49SMD18.432MHz20PF30PPM-10~70℃，美国ECS晶振公司，CSM-3X是一种小型低轮廓电阻焊缝型SMD石英晶体。将CSM-7X（HC-49USXSMD）的占用空间减少50%。成本效益高的，低调的，Pb免费/RoHS兼容ECS-184-20-...
-
-
.jpg)

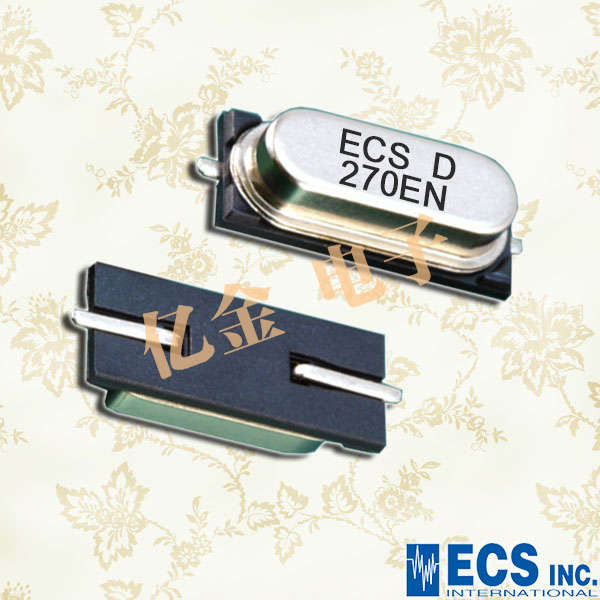

ECS-135.6-20-3X-TR 49SMD 18.432MHz 20PF 30PPM -10~70℃，美国ECS晶振公司， CSM-3X是一种小型低轮廓电阻焊缝型SMD石英晶体。将CSM-7X（HC-49USX SMD）的占用空间减少50%。成本效益高的，低调的， Pb免费/RoHS兼容
ECS-135.6-20-3X-TR 49SMD 18.432MHz 20PF 30PPM -10~70℃
| PARAMETERS | CONDITIONS | CSM-3X | UNITS | |||||||||||||||
| MIN | TYP | MAX | ||||||||||||||||
| Frequency Range | fo | 6.000 | 40.000 | MHz | ||||||||||||||
| Frequency Tolerance | at +25°C | ± 30 | ppm | |||||||||||||||
| Frequency Stability ref @+25°C | Standard -10 to +70°C | ± 50 | ppm | |||||||||||||||
| Shunt Capacitance | Co | 7 | pF | |||||||||||||||
| Load Capacitance (CL) | Specify in P/N | 10 | 20 | Series | pF | |||||||||||||
| Drive Level | 100 | µW | ||||||||||||||||
| Operating Temperature | Standard | --10 | +70 | °C | ||||||||||||||
| Storage Temperature | --40 | +85 | °C | |||||||||||||||
| Aging (First Year) | @ +25°C ±3°C | ±5 | ppm | |||||||||||||||
.jpg)
ECS-135.6-20-3X-TR 49SMD 18.432MHz 20PF 30PPM -10~70℃
| ECS原厂编码 | 生产厂家 | 型号 | 系列 | 频率 |
| ECS-250-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 25MHz |
| ECS-250-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 25MHz |
| ECS-250-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 25MHz |
| ECS-120-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 12MHz |
| ECS-120-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 12MHz |
| ECS-120-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 12MHz |
| ECS-160-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 16MHz |
| ECS-160-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 16MHz |
| ECS-160-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 16MHz |
| ECS-143-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 14.31818MHz |
| ECS-143-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 14.31818MHz |
| ECS-143-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 14.31818MHz |
| ECS-147.4-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 14.7456MHz |
| ECS-147.4-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 14.7456MHz |
| ECS-147.4-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 14.7456MHz |
| ECS-184-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 18.432MHz |
| ECS-184-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 18.432MHz |
| ECS-184-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 18.432MHz |
| ECS-200-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 20MHz |
| ECS-200-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 20MHz |
| ECS-200-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 20MHz |
| ECS-245.7-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 24.576MHz |
| ECS-245.7-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 24.576MHz |
| ECS-245.7-20-3X-TR | ECS晶振 | CSM-3X | MHz Crystal | 24.576MHz |
| ECS-286.3-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 28.63636MHz |
| ECS-286.3-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 28.63636MHz |
| ECS-286.3-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 28.63636MHz |
| ECS-300-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 30MHz |
| ECS-300-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 30MHz |
| ECS-300-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 30MHz |
| ECS-400-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 40MHz |
| ECS-400-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 40MHz |
| ECS-400-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 40MHz |
| ECS-160-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 16MHz |
| ECS-160-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 16MHz |
| ECS-160-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 16MHz |
| ECS-122.8-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 12.288MHz |
| ECS-122.8-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 12.288MHz |
| ECS-122.8-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 12.288MHz |
| ECS-147.4-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 14.7456MHz |
| ECS-147.4-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 14.7456MHz |
| ECS-147.4-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 14.7456MHz |
| ECS-250-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 25MHz |
| ECS-250-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 25MHz |
| ECS-250-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 25MHz |
| ECS-120-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 12MHz |
| ECS-120-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 12MHz |
| ECS-120-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 12MHz |
| ECS-200-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 20MHz |
| ECS-200-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 20MHz |
| ECS-200-20-3X-EN-TR | ECS晶振 | CSM-3X | MHz Crystal | 20MHz |
| ECS-135.6-20-3X-TR | ECS Inc. | CSM-3X | MHz Crystal | 13.56MHz |
| ECS-135.6-20-3X-TR | ECS Inc. | CSM-3X | MHz Crystal | 13.56MHz |
