RENESAS瑞萨晶振,XUH518027.120000X,航空航天设备晶振
- 频率：27.12MHz
- 尺寸：5.0×3.2mm
- 应 用： RENESAS瑞萨晶振,XU石英晶体振荡器,XUH518027.120000X晶振,LVCMOS输出晶振,5032mm晶振,进口贴片晶振,频率27.12MHz,电压1.8V,频率稳定性20ppm,工作温度-20~70°C,低功耗晶振,高品质晶振,航空航天设备晶振,数字音频广播...
-
-
RENESAS瑞萨晶振,XUH518027.120000X,航空航天设备晶振,RENESAS瑞萨晶振,XU石英晶体振荡器,XUH518027.120000X晶振,LVCMOS输出晶振,5032mm晶振,进口贴片晶振,频率27.12MHz,电压1.8V,频率稳定性20ppm,工作温度-20~70°C,低功耗晶振,高品质晶振,航空航天设备晶振,数字音频广播晶振,以太网晶振,蓝牙模块晶振.

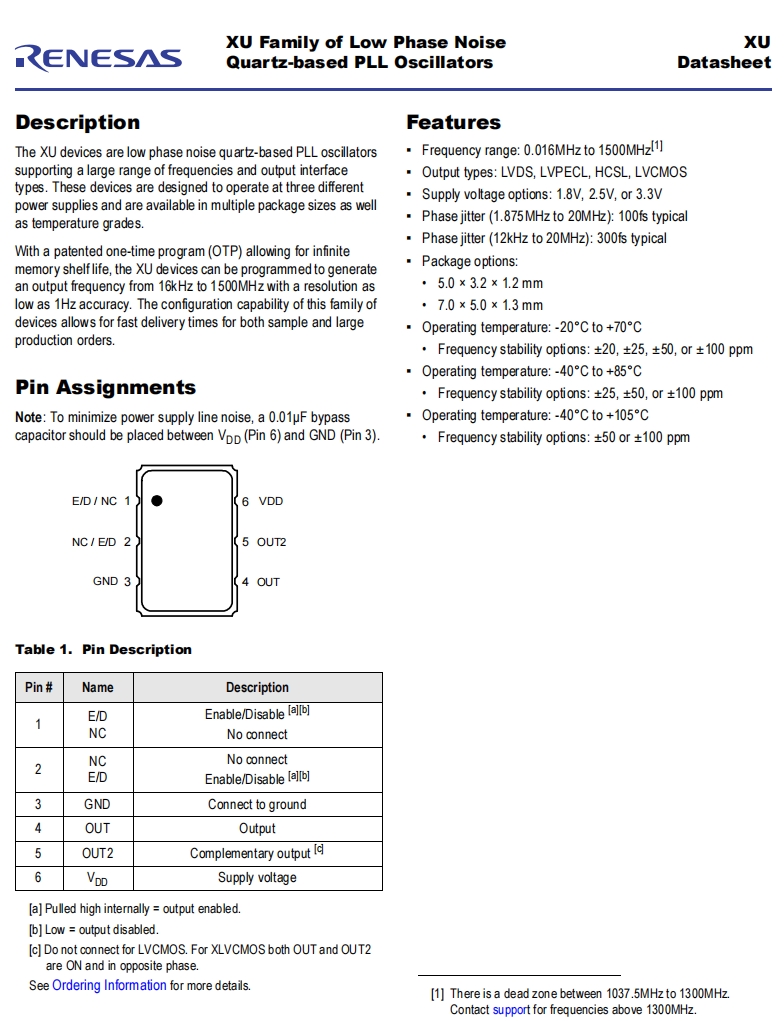

RENESAS瑞萨晶振,XUH518027.120000X,航空航天设备晶振特点：
•频率范围:0.016MHz至1500MHz[1]
•输出类型:LVDS, LVPECL, HCSL, LVCMOS
•供电电压选项:1.8V, 2.5V，或3.3V
•相位抖动(1.875MHz至20MHz): 100fs典型
•相位抖动(12kHz至20MHz): 300fs典型
•包装选项:
•5.0 × 3.2 × 1.2毫米
•7.0 × 5.0 × 1.3 mm
•工作温度:-20℃~ +70℃
•频率稳定性选项:±20，±25，±50，或±100 ppm
•工作温度:-40°C至+85°C
•频率稳定性选项:±25，±50，或±100 ppm
•工作温度:-40°C至+105°C
•频率稳定性选项:±50或±100 ppm
RENESAS瑞萨晶振,XUH518027.120000X,航空航天设备晶振规格表
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 27.12MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 1.8V±0.3V | |
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -20℃~ +70℃ | |
| 频率公差（标准） | f_tol | ±20ppm | +25℃,超出标准的规格说明请联系我们以便获取相关信息 |
| 供电电流 | IDD | 58mA Max | LVCMOS |
| 输出电压（高） | VOH | 90%V Min | VDD = 1.8V ±5%. |
| 输出电压（低） | VOL | 10%V Max | VDD = 1.8V ±5%. |
| 对称性 | SYM | 45%~55% |
FOUT < 62.5MHz.
|
| 输出负载 | 10pF | LVCMOS Differential. | |
| 输入电压 | VIH | 70%VDD Min | LVCMOS |
| VIL | 30%VDD Max | ||
| 上升下降时间 | tr/tf | 5ns Max | LVCMOS 90% to 10% Vpp |
| 起始时间 | t str | 5ms Max | VDD达到最小指定水平后输出有效时间 |
| 相位抖动 | tpj | 800 fs Typ | 12KHZ~20MHz |
| 老化 | f_aging | ±1ppm/year | +25℃,第一年 |
.jpg)

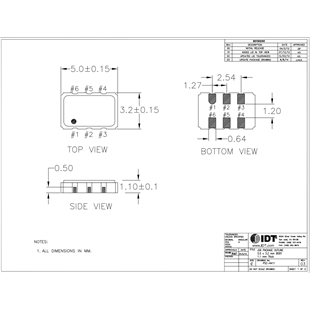

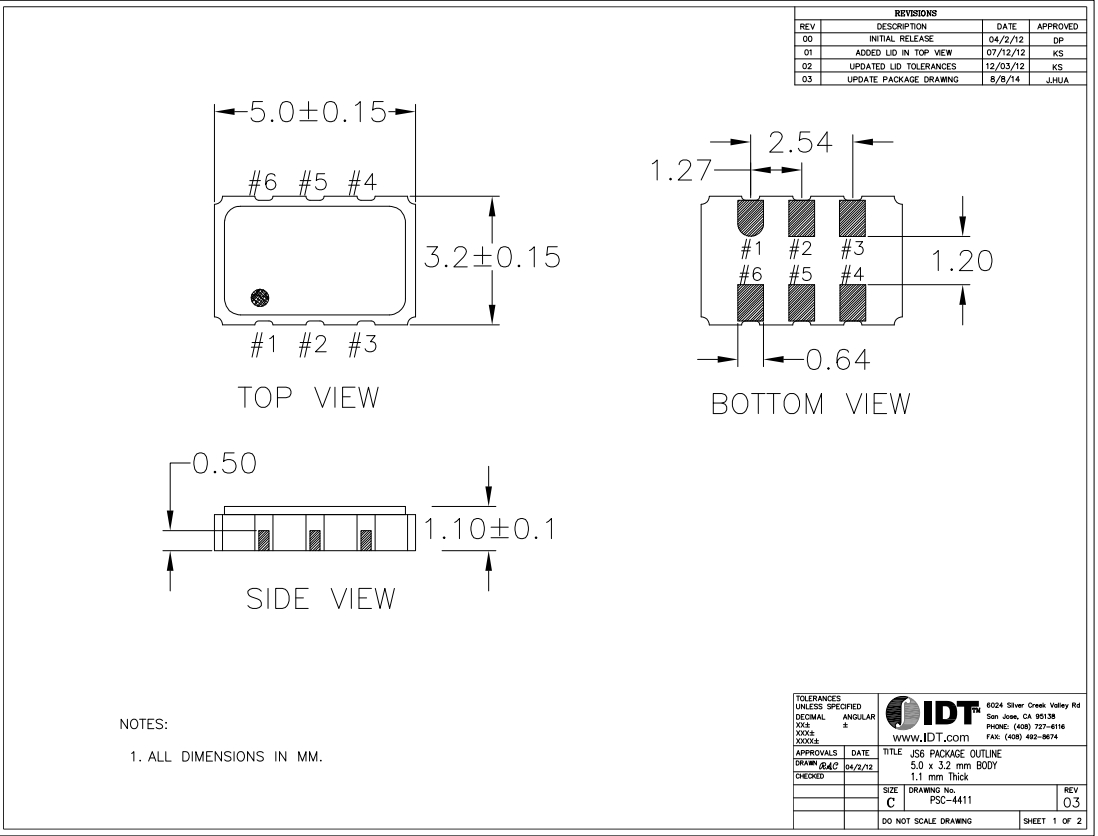

RENESAS瑞萨晶振,XUH518027.120000X,航空航天设备晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 |
| XUL535100.000000I | Renesas Electronics America Inc | XU | 100 MHz | LVDS | 3.3V |
| XUL516100.000000I | Renesas Electronics America Inc | XU | 100 MHz | LVDS | 1.8V |
| XUN535100.000000I | Renesas Electronics America Inc | XU | 100 MHz | HCSL | 3.3V |
| XUL536100.000000I | Renesas Electronics America Inc | XU | 100 MHz | LVDS | 3.3V |
| XUL536125.000000I | Renesas Electronics America Inc | XU | 125 MHz | LVDS | 3.3V |
| XUL736100.000000I | Renesas Electronics America Inc | XU | 100 MHz | LVDS | 3.3V |
| XUL536156.250000I | Renesas Electronics America Inc | XU | 156.25 MHz | LVDS | 3.3V |
| XUL736150.000000I | Renesas Electronics America Inc | XU | 150 MHz | LVDS | 3.3V |
| XUH518027.120000X | Renesas Electronics America Inc | XU | 27.12 MHz | HCMOS | 1.8V |
| XUH538024.576000X | Renesas Electronics America Inc | XU | 24.576 MHz | HCMOS | 3.3V |
| XUH738016.125000X | Renesas Electronics America Inc | XU | 16.125 MHz | HCMOS | 3.3V |
| XUH738044.736000X | Renesas Electronics America Inc | XU | 44.736 MHz | HCMOS | 3.3V |
| XUH518033.333333X | Renesas Electronics America Inc | XU | 33.333333 MHz | HCMOS | 1.8V |
| XUH738025.000000X | Renesas Electronics America Inc | XU | 25 MHz | HCMOS | 3.3V |
| XUH738072.000000X | Renesas Electronics America Inc | XU | 72 MHz | HCMOS | 3.3V |
| XUH738022.579200X | Renesas Electronics America Inc | XU | 22.5792 MHz | HCMOS | 3.3V |
| XUH538027.000000X | Renesas Electronics America Inc | XU | 27 MHz | HCMOS | 3.3V |
| XUH538022.579200X | Renesas Electronics America Inc | XU | 22.5792 MHz | HCMOS | 3.3V |
| XUH728025.000000X | Renesas Electronics America Inc | XU | 25 MHz | HCMOS | 2.5V |
| XUH728020.000000X | Renesas Electronics America Inc | XU | 20 MHz | HCMOS | 2.5V |
| XUH538013.000000X | Renesas Electronics America Inc | XU | 13 MHz | HCMOS | 3.3V |
| XUH728016.125000X | Renesas Electronics America Inc | XU | 16.125 MHz | HCMOS | 2.5V |
| XUH538067.108864X | Renesas Electronics America Inc | XU | 67.108864 MHz | HCMOS | 3.3V |
| XUH538125.000000X | Renesas Electronics America Inc | XU | 125 MHz | HCMOS | 3.3V |
| XUH535004.000000X | Renesas Electronics America Inc | XU | 4 MHz | LVCMOS | 3.3V |
| XUH735033.333000X | Renesas Electronics America Inc | XU | 33.333 MHz | LVCMOS | 3.3V |
| XUH730060.000000X | Renesas Electronics America Inc | XU | 60 MHz | LVCMOS | 3.3V |
| XUH730080.000000I | Renesas Electronics America Inc | XU | 80 MHz | LVCMOS | 3.3V |
| XUH736030.720000X | Renesas Electronics America Inc | XU | 30.72 MHz | LVCMOS | 3.3V |
| XUH515045.125000I | Renesas Electronics America Inc | XU | 45.125 MHz | LVCMOS | 1.8V |
| XUH525125.000000I | Renesas Electronics America Inc | XU | 125 MHz | LVCMOS | 2.5V |
| XUH715066.600000I | Renesas Electronics America Inc | XU | 66.6 MHz | LVCMOS | 1.8V |
| XUH715040.000000X | Renesas Electronics America Inc | XU | 40 MHz | LVCMOS | 1.8V |
| XUH736033.000000I | Renesas Electronics America Inc | XU | 33 MHz | LVCMOS | 3.3V |
| XUH716050.000000I | Renesas Electronics America Inc | XU | 50 MHz | LVCMOS | 1.8V |
| XUH516033.333300I | Renesas Electronics America Inc | XU | 33.3333 MHz | LVCMOS | 1.8V |
| XUH536090.000000I | Renesas Electronics America Inc | XU | 90 MHz | LVCMOS | 3.3V |
| XUX735080.000000X | Renesas Electronics America Inc | XU | 80 MHz | HCMOS | 3.3V |
| XUH536005.000000I8 | Renesas Electronics America Inc | XU | 5 MHz | LVCMOS | 3.3V |
| XUJ730080.000000X | Renesas Electronics America Inc | XU | 80 MHz | LVCMOS | 3.3V |
| XUL530039.000000X | Renesas Electronics America Inc | XU | 39 MHz | LVDS | 3.3V |
| XUH516012.000000I | Renesas Electronics America Inc | XU | 12 MHz | LVCMOS | 1.8V |
| XUH515100.000000K | Renesas Electronics America Inc | XU | 100 MHz | LVCMOS | 1.8V |
| XUH715024.000000K | Renesas Electronics America Inc | XU | 24 MHz | LVCMOS | 1.8V |
| XUH535008.000000K | Renesas Electronics America Inc | XU | 8 MHz | LVCMOS | 3.3V |
| XUH535025.000000K | Renesas Electronics America Inc | XU | 25 MHz | LVCMOS | 3.3V |
| XUL515644.530000I | Renesas Electronics America Inc | XU | 644.53 MHz | LVDS | 1.8V |
| XUL526644.530000I | Renesas Electronics America Inc | XU | 644.53 MHz | LVDS | 2.5V |
| XUH738020.000000X | Renesas Electronics America Inc | XU | 20 MHz | HCMOS | 3.3V |
| XUH538010.000000X | Renesas Electronics America Inc | XU | 10 MHz | HCMOS | 3.3V |
| XUH538020.000000X | Renesas Electronics America Inc | XU | 20 MHz | HCMOS | 3.3V |
| XUH538040.000000X | Renesas Electronics America Inc | XU | 40 MHz | HCMOS | 3.3V |
| XUH535003.686000I | Renesas Electronics America Inc | XU | 3.686 MHz | LVCMOS | 3.3V |
| XUH510100.000000X | Renesas Electronics America Inc | XU | 100 MHz | HCMOS | 1.8V |
| XUH535000.127700K | Renesas Electronics America Inc | XU | 127.7 kHz | HCMOS | 3.3V |
| XUH535000.050000X | Renesas Electronics America Inc | XU | 50 kHz | HCMOS | 3.3V |
| XUH515020.000000K | Renesas Electronics America Inc | XU | 20 MHz | HCMOS | 1.8V |
| XUH535025.000000X | Renesas Electronics America Inc | XU | 25 MHz | HCMOS | 3.3V |
| XUH735027.115000X | Renesas Electronics America Inc | XU | 27.115 MHz | HCMOS | 3.3V |
| XUH535100.000000X | Renesas Electronics America Inc | XU | 100 MHz | HCMOS | 3.3V |
| XUH735027.000000X | Renesas Electronics America Inc | XU | 27 MHz | HCMOS | 3.3V |
| XUH535000.192000X | Renesas Electronics America Inc | XU | 192 kHz | HCMOS | 3.3V |
| XUH735048.000000X | Renesas Electronics America Inc | XU | 48 MHz | HCMOS | 3.3V |
| XUH735050.000000X | Renesas Electronics America Inc | XU | 50 MHz | HCMOS | 3.3V |
| XUH730049.700000X | Renesas Electronics America Inc | XU | 49.7 MHz | HCMOS | 3.3V |
| XUL535644.531250I | Renesas Electronics America Inc | XU | 644.53125 MHz | LVDS | 3.3V |
| XUH535017.177600X | Renesas Electronics America Inc | XU | 17.1776 MHz | HCMOS | 3.3V |
| XUH535048.000000X | Renesas Electronics America Inc | XU | 48 MHz | HCMOS | 3.3V |
| XUH730004.800000X | Renesas Electronics America Inc | XU | 4.8 MHz | HCMOS | 3.3V |
| XUH510133.333000X | Renesas Electronics America Inc | XU | 133.333 MHz | HCMOS | 1.8V |
| XUH535000.042000X | Renesas Electronics America Inc | XU | 42 kHz | HCMOS | 3.3V |
| XUH535024.000000X | Renesas Electronics America Inc | XU | 24 MHz | HCMOS | 3.3V |
| XUH535012.000000X | Renesas Electronics America Inc | XU | 12 MHz | HCMOS | 3.3V |
| XUH525010.000000X | Renesas Electronics America Inc | XU | 10 MHz | HCMOS | 2.5V |
| XUH535000.044000X | Renesas Electronics America Inc | XU | 44 kHz | HCMOS | 3.3V |
| XUH535000.096000X | Renesas Electronics America Inc | XU | 96 kHz | HCMOS | 3.3V |
| XUH525024.000000X | Renesas Electronics America Inc | XU | 24 MHz | HCMOS | 2.5V |
| XUH530000.460800X | Renesas Electronics America Inc | XU | 460.8 kHz | HCMOS | 3.3V |
| XUH715125.000000X | Renesas Electronics America Inc | XU | 125 MHz | LVCMOS | 1.8V |
| XUH530000.032768X | Renesas Electronics America Inc | XU | 32.768 kHz | LVCMOS | 3.3V |
| XUJ715033.000000I | Renesas Electronics America Inc | XU | 33 MHz | LVCMOS | 1.8V |
| XUX730080.000000I | Renesas Electronics America Inc | XU | 80 MHz | HCMOS | 3.3V |
| XUJ735100.000000I | Renesas Electronics America Inc | XU | 100 MHz | LVCMOS | 3.3V |
| XUH518090.000000X | Renesas Electronics America Inc | XU | 90 MHz | LVCMOS | 1.8V |
| XUL735100.016000I | Renesas Electronics America Inc | XU | 100.016 MHz | LVDS | 3.3V |
| XUL535075.000000I | Renesas Electronics America Inc | XU | 75 MHz | LVDS | 3.3V |
| XUH518033.000000X | Renesas Electronics America Inc | XU | 33 MHz | LVCMOS | 1.8V |
| XUL715033.330000I | Renesas Electronics America Inc | XU | 33.33 MHz | LVDS | 1.8V |
| XUH518124.000000X | Renesas Electronics America Inc | XU | 124 MHz | LVCMOS | 1.8V |
| XUP736050.000000X | Renesas Electronics America Inc | XU | 50 MHz | LVPECL | 3.3V |
| XUH716066.666000I | Renesas Electronics America Inc | XU | 66.666 MHz | HCMOS | 1.8V |
| XUN535100.000000X | Renesas Electronics America Inc | XU | 100 MHz | HCSL | 3.3V |
| XUH516125.000000I | Renesas Electronics America Inc | XU | 125 MHz | HCMOS | 1.8V |
| XUM520125.000000X | Renesas Electronics America Inc | XU | 125 MHz | LVDS | 2.5V |
| XUP535024.576000X | Renesas Electronics America Inc | XU | 24.576 MHz | LVPECL | 3.3V |
| XUH526024.000000I | Renesas Electronics America Inc | XU | 24 MHz | HCMOS | 2.5V |
| XUP735114.866667X | Renesas Electronics America Inc | XU | 114.866667 MHz | LVPECL | 3.3V |
| XUL730100.000000X | Renesas Electronics America Inc | XU | 100 MHz | LVDS | 3.3V |
| XUP735025.000000X | Renesas Electronics America Inc | XU | 25 MHz | LVPECL | 3.3V |
| XUP535100.000000X | Renesas Electronics America Inc | XU | 100 MHz | LVPECL | 3.3V |
| XUH715133.333333I | Renesas Electronics America Inc | XU | 133.333333 MHz | HCMOS | 1.8V |
| XUL525100.000000X | Renesas Electronics America Inc | XU | 100 MHz | LVDS | 2.5V |
| XUH526016.384000I | Renesas Electronics America Inc | XU | 16.384 MHz | HCMOS | 2.5V |
| XUL735125.000000X | Renesas Electronics America Inc | XU | 125 MHz | LVDS | 3.3V |
| XUP735125.000000X | Renesas Electronics America Inc | XU | 125 MHz | LVPECL | 3.3V |
| XUH536100.000000I | Renesas Electronics America Inc | XU | 100 MHz | HCMOS | 3.3V |
| XUP535075.000000X | Renesas Electronics America Inc | XU | 75 MHz | LVPECL | 3.3V |
| XUO535027.000000X | Renesas Electronics America Inc | XU | 27 MHz | HCSL | 3.3V |
| XUH516033.333333I | Renesas Electronics America Inc | XU | 33.333333 MHz | HCMOS | 1.8V |
| XUH516024.000000I | Renesas Electronics America Inc | XU | 24 MHz | LVCMOS | 1.8V |
| XUH516026.000000I | Renesas Electronics America Inc | XU | 26 MHz | LVCMOS | 1.8V |
| XUH716019.440000I | Renesas Electronics America Inc | XU | 19.44 MHz | LVCMOS | 1.8V |
| XUH516031.250000I | Renesas Electronics America Inc | XU | 31.25 MHz | LVCMOS | 1.8V |
| XUH535133.300000I | Renesas Electronics America Inc | XU | 133.3 MHz | LVCMOS | 3.3V |
| XUH516000.032768I | Renesas Electronics America Inc | XU | 32.768 kHz | LVCMOS | 1.8V |
| XUL535156.250000I | Renesas Electronics America Inc | XU | 156.25 MHz | LVDS | 3.3V |
| XUH735054.000000K | Renesas Electronics America Inc | XU | 54 MHz | LVCMOS | 3.3V |
| XUH515033.000000K | Renesas Electronics America Inc | XU | 33 MHz | LVCMOS | 1.8V |
| XUH510025.000000K | Renesas Electronics America Inc | XU | 25 MHz | LVCMOS | 1.8V |
| XUQ736341.796875I | Renesas Electronics America Inc | XU | 341.796875 MHz | LVPECL | 3.3V |
| XUQ736328.125000I | Renesas Electronics America Inc | XU | 328.125 MHz | LVPECL | 3.3V |
| XUH736100.000000I | Renesas Electronics America Inc | XU | 100 MHz | HCMOS | 3.3V |
| XUM736400.000000I | Renesas Electronics America Inc | XU | 400 MHz | LVDS | 3.3V |
| XUL736380.000000I | Renesas Electronics America Inc | XU | 380 MHz | LVDS | 3.3V |
| XUL538750.000000X | Renesas Electronics America Inc | XU | 750 MHz | LVDS | 3.3V |
| XUL735208.125000K | Renesas Electronics America Inc | XU | 208.125 MHz | LVDS | 3.3V |
| XUH738050.000000X | Renesas Electronics America Inc | XU | 50 MHz | LVCMOS | 3.3V |
| XUL736019.440000X | Renesas Electronics America Inc | XU | 19.44 MHz | LVDS | 3.3V |
| XUL730004.000000I | Renesas Electronics America Inc | XU | 4 MHz | LVDS | 3.3V |
| XUL510125.000000I | Renesas Electronics America Inc | XU | 125 MHz | LVDS | 1.8V |
| XUQ735125.000000I | Renesas Electronics America Inc | XU | 125 MHz | LVPECL | 3.3V |
| XUJ720010.000000I | Renesas Electronics America Inc | XU | 10 MHz | LVCMOS | 2.5V |
| XUJ726110.000000X | Renesas Electronics America Inc | XU | 110 MHz | LVCMOS | 2.5V |
| XUP735133.330000X | Renesas Electronics America Inc | XU | 133.33 MHz | LVPECL | 3.3V |
| XUL725050.000000I | Renesas Electronics America Inc | XU | 50 MHz | LVDS | 2.5V |
| XUH538033.000000X | Renesas Electronics America Inc | XU | 33 MHz | LVCMOS | 3.3V |
| XUH738045.158400X | Renesas Electronics America Inc | XU | 45.1584 MHz | LVCMOS | 3.3V |
| XUH518001.843200X | Renesas Electronics America Inc | XU | 1.8432 MHz | LVCMOS | 1.8V |
| XUX515024.000000I | Renesas Electronics America Inc | XU | 24 MHz | HCMOS, LVCMOS | 1.8V |
| XUL538098.304000X | Renesas Electronics America Inc | XU | 98.304 MHz | LVDS | 3.3V |
| XUH518031.250000X | Renesas Electronics America Inc | XU | 31.25 MHz | LVCMOS | 1.8V |
| XUH536025.000000I | Renesas Electronics America Inc | XU | 25 MHz | HCMOS | 3.3V |
| XUH536033.333330I | Renesas Electronics America Inc | XU | 33.33333 MHz | HCMOS | 3.3V |
| XUH735140.000000I | Renesas Electronics America Inc | XU | 140 MHz | HCMOS | 3.3V |
| XUH536030.000000I | Renesas Electronics America Inc | XU | 30 MHz | HCMOS | 3.3V |
| XUH536025.001250I | Renesas Electronics America Inc | XU | 25.00125 MHz | HCMOS | 3.3V |
| XUH735148.500000I | Renesas Electronics America Inc | XU | 148.5 MHz | HCMOS | 3.3V |
| XUH516100.000000I | Renesas Electronics America Inc | XU | 100 MHz | HCMOS | 1.8V |
| XUH536025.600000I | Renesas Electronics America Inc | XU | 25.6 MHz | HCMOS | 3.3V |
| XUH526000.828000I | Renesas Electronics America Inc | XU | 828 kHz | HCMOS | 2.5V |
| XUH736025.000000I | Renesas Electronics America Inc | XU | 25 MHz | HCMOS | 3.3V |
| XUH536033.333300I | Renesas Electronics America Inc | XU | 33.3333 MHz | HCMOS | 3.3V |
| XUH736125.000000I | Renesas Electronics America Inc | XU | 125 MHz | HCMOS | 3.3V |
| XUH516030.000000I | Renesas Electronics America Inc | XU | 30 MHz | HCMOS | 1.8V |
| XUH536125.000000I | Renesas Electronics America Inc | XU | 125 MHz | HCMOS | 3.3V |
| XUH536050.000000I | Renesas Electronics America Inc | XU | 50 MHz | HCMOS | 3.3V |
| XUH715133.330000I | Renesas Electronics America Inc | XU | 133.33 MHz | HCMOS | 1.8V |
| XUH716125.000000I | Renesas Electronics America Inc | XU | 125 MHz | HCMOS | 1.8V |
| XUH536000.032768I | Renesas Electronics America Inc | XU | 32.768 kHz | HCMOS | 3.3V |
| XUH536000.050000I | Renesas Electronics America Inc | XU | 50 kHz | HCMOS | 3.3V |
| XUH536010.000000I | Renesas Electronics America Inc | XU | 10 MHz | HCMOS | 3.3V |
| XUH515160.000000I | Renesas Electronics America Inc | XU | 160 MHz | HCMOS | 1.8V |
| XUH535156.250000I | Renesas Electronics America Inc | XU | 156.25 MHz | HCMOS | 3.3V |
| XUH516026.214400I | Renesas Electronics America Inc | XU | 26.2144 MHz | HCMOS | 1.8V |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://www.yijindz.com
地址：广东省深圳市宝安区新安107国道旁
销售代表
