首页进口晶振泰艺晶振XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN

频率：8MHz
尺寸：5032mm

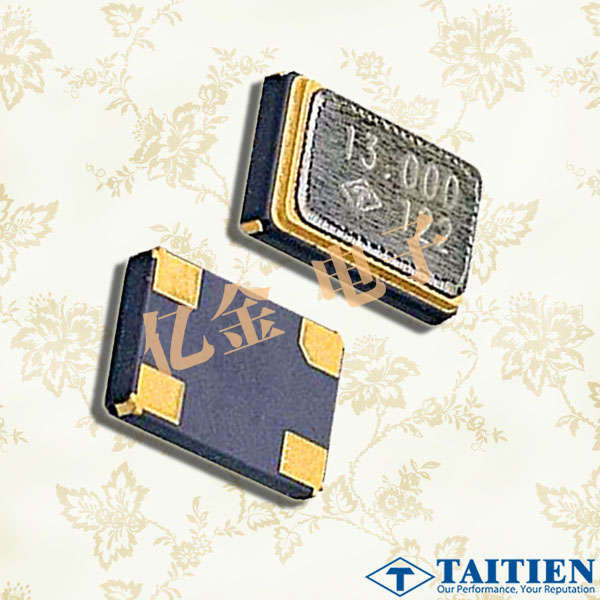

应　用： XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN,台湾进口石英晶振,典型的5.0x3.2x0.8mm陶瓷SMD封装。-12mm宽的胶带和卷轴包装，用于自动组装。-紧密公差10ppm可用，蓝牙、GPS显示器、电视（FPD/FTFLCD），计算...

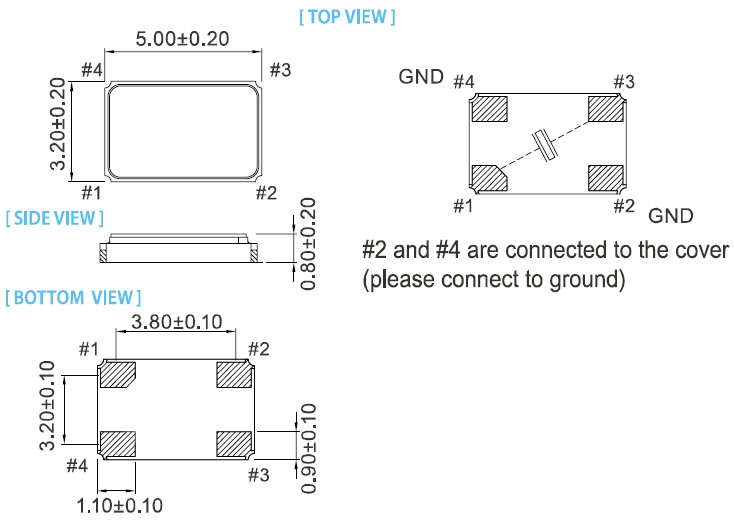

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN,台湾进口石英晶振,典型的5.0 x 3.2 x 0.8 mm陶瓷SMD封装。- 12 mm宽的胶带和卷轴包装，用于自动组装。-紧密公差10 ppm可用，蓝牙、GPS显示器、电视（FPD/FTF LCD），计算机外围设备

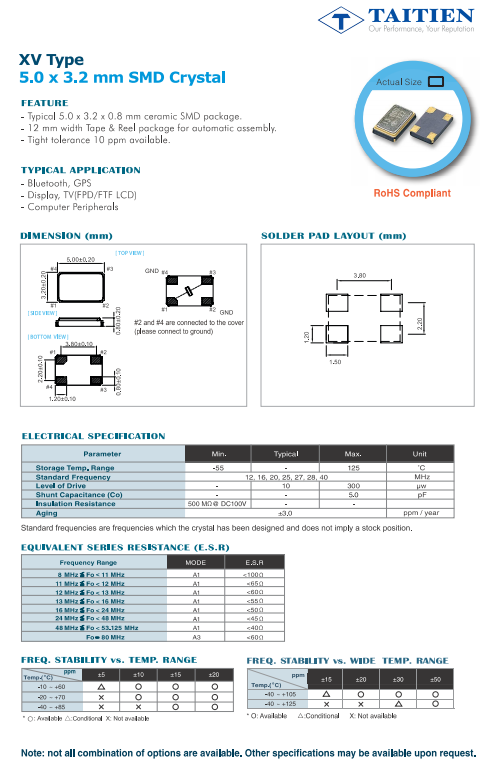

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN

参数	最小值	典型的	最大值	单位
工作温度	--55	-	125	℃
频率	12, 16, 20, 25, 27, 28, 40			MHz
驱动电平	-	10	300	µw
负载电荷	-	-	5.0	pF
绝缘电阻	500 M?@ DC100V	-	-
老化	±3.0			ppm / year

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN

TAITIEN原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
