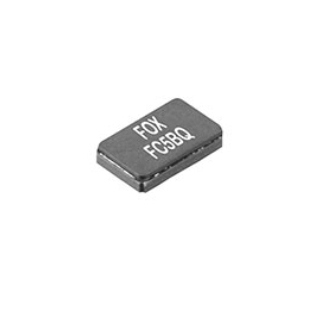

FC5BQCCMC12.0-T1,FOX福克斯晶振,5032四脚贴片晶振
- 频率：12Mhz
- 尺寸：5032mm
- 应 用： FC5BQCCMC12.0-T1,FOX福克斯晶振,5032四脚贴片晶振,12MHz标称频率搭配基谐工作模式,信号输出稳定,频率容差与稳定性均达±30ppm,负载电容20pF,能为电子设备提供精准的时钟基准.
-
.png)
.png)
FC5BQCCMC12.0-T1,FOX福克斯晶振,5032四脚贴片晶振

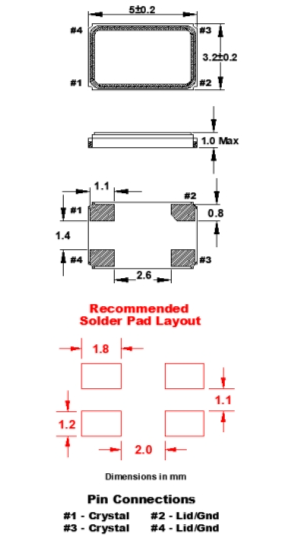

FC5BQCCMC12.0-T1是美国FOX福克斯晶振旗下一款高性能5032封装四脚贴片晶振,核心频率精准定格为12MHz,搭载基谐工作模式,确保信号输出的稳定性与纯净度.产品具备±30ppm的高频频率容差与稳定性,搭配20pF标准负载电容及80Ohms等效串联电阻,能适配多数电子设备的时钟信号需求.采用无铅表面贴装工艺,5.00mm×3.20mm的小巧尺寸可有效节省PCB板空间,且符合RoHS环保认证,工作温度覆盖0℃~70℃常规工况,广泛适用于消费电子,工业控制等通用领域.
.png)
.png)
FC5BQCCMC12.0-T1,FOX福克斯晶振,5032四脚贴片晶振
| 原厂型号 Originalmodel： | FC5BQCCMC12.0-T1 | 品牌brand： | FOX |
| 品牌brand： | FOX | 高度PackageHeight： | 1.0mm |
| 型号名称 Modelname： | FC5BQ | 温度OperatingTemperature | 0+70℃ |
| Type系列： | MHz Crystal | 脚位Termination： | 4-pad |
| 频率 frequency： | 12M | 封装类型PackageType： | 4-smd |
| frequencytolerance频率容差 | ±30pp | 最小包装数MPQ： | 1000 |
| Loadcapacitance 负载电容 | 20PF | Packaging 包装 | TapeandReel |
| Size/Dimension尺寸 | 5032贴片晶振 | 安装方式 Installation： | Surfacemount |
.png)
.png)
FC5BQCCMC12.0-T1,FOX福克斯晶振,5032四脚贴片晶振
FC5BQCCMC12.0-T1,FOX福克斯晶振,5032四脚贴片晶振
| FC0BSFEEN23A99675-T2 | Fox福克斯晶振 | FC0BS | 1.6mm | 1.2mm | 0.45mm | -20°C ~ 85°C |
| FC0BSFEEN23A99675-T3 | Fox福克斯晶振 | FC0BS | 1.6mm | 1.2mm | 0.45mm | -20°C ~ 85°C |
| FC1BACBEI20.0-T3 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 1mm | -40°C ~ 125°C |
| FC1BAEBDI16.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBDI20.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBDI24.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBDI25.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | -40°C ~ 125°C | |
| FC1BAEBDI40.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI16.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI20.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI24.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI25.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI40.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI16.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI20.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI24.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI25.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI40.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BQCCEK27.12-1 | Fox福克斯晶振 | FC1BQ | 2mm | 1.6mm | 0.7mm | -30°C ~ 85°C |
| FC1BSCBEM27.12-T3 | Fox福克斯晶振 | FC1BS | 2mm | 1.6mm | 0.45mm | -40°C ~ 85°C |
| FC1BSCCEM16.0-T3 | Fox福克斯晶振 | FC1BS | 2mm | 1.6mm | 0.45mm | -40°C ~ 85°C |
| FC1BSHFEM32.0-T3 | Fox福克斯晶振 | FC1BS | 2mm | 1.6mm | 0.45mm | -40°C ~ 85°C |
| FC1BSHHVK50.0-1-T3 | Fox福克斯晶振 | FC1BS | 2mm | 1.6mm | 0.45mm | -30°C ~ 85°C |
| FC2BACBEI16.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 1mm | -40°C ~ 12°C |
| FC2BACBEI16.0-T3 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 1mm | -40°C ~ 12°C |
| FC2BAEBDI12.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI16.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI20.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI24.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI25.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI40.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI12.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI16.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI20.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI24.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI25.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI40.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBGI25.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BSBBMM16.0-T1 | Fox福克斯晶振 | FC2BS | 2.5mm | 2mm | 0.45mm | -40°C ~ 85°C |
| FC2BSBBMM16.0-T3 | Fox福克斯晶振 | FC2BS | 2.5mm | 2mm | 0.45mm | -40°C ~ 85°C |
| FC3BABBKM20.0-T3 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 85°C |
| FC3BACAGI16.0-T3 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 12°C |
| FC3BACALI16.0-T3 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 12°C |
| FC3BACBDI16.0-T3 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 12°C |
| FC3BACCGM20.0-T3 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 85°C |
| FC3BACCLP12.0-T3 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 10°C |
| FC3BAEBDI12.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI16.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI20.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI24.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI25.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI40.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI8.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBGI12.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBGI24.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBGI25.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBGI40.0-T1 | Fox福克斯晶振 | FC3BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC3BQBBDM20.0-T3 | Fox福克斯晶振 | FC3BQ | 3.2mm | 2.5mm | 0.6mm | -40°C ~ 85°C |
| FC3BQBBME12.0-T3 | Fox福克斯晶振 | FC3BQ | 3.2mm | 2.5mm | 0.6mm | -10°C ~ 70°C |
| FC3BQBBME16.0-T1 | Fox福克斯晶振 | FC3BQ | 3.2mm | 2.5mm | 0.6mm | -10°C ~ 70°C |
