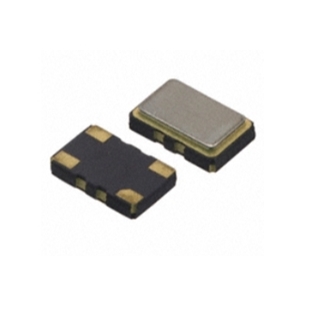

FT5CNDPK12.8-T1,微型贴片晶振,FOX914石英振荡器
- 频率：12.8 MHz
- 尺寸：5.00mm x 3.20mm
- 应 用： FT5CNDPK12.8-T1,微型贴片晶振,FOX914石英振荡器,采用极致紧凑的微型贴片封装能轻松嵌入智能穿戴,微型传感器等对空间要求严苛的设备,完美适配电子设备微型化,轻薄化设计趋势.
-
.png)
.png)

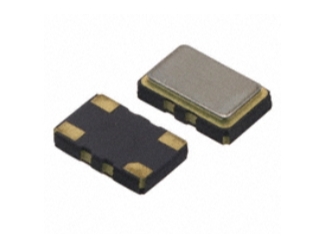

FT5CNDPK12.8-T1,微型贴片晶振,FOX914石英振荡器
FT5CNDPK12.8-T1凭借12.8MHz频率,微型贴片封装及FOX914系列可靠性,全面适配多领域微型设备,在消费电子领域,可嵌入智能手环,微型蓝牙耳机的主控电路,微型封装节省PCB空间,12.8MHz频率支撑设备的时间显示,数据存储时序需求,在物联网领域,适配微型无线内置传感器(如温湿度采集节点),低功耗特性延长电池寿命,稳定的时钟输出保障传感器数据采集的时序准确性,避免数据丢失,在医疗电子领域,适用于微型便携监测仪(如血氧仪),微型封装满足设备小型化要求,FOX914系列的高稳定性晶振确保医疗数据采集的精准性,为健康监测提供可靠时序支撑,是一款跨微型场景的通用型石英振荡器.
.png)
.png)

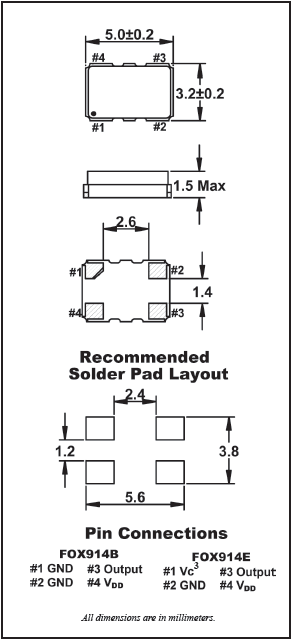

FT5CNDPK12.8-T1,微型贴片晶振,FOX914石英振荡器
| 原厂型号 Originalmodel： | FT5CNDPK12.8-T1 | 品牌brand： | Fox Electronics |
| Manufacturer品牌 | Fox Electronics | OperatingTemperature温度 | -30°C ~ 85°C |
| Series型号 | FOX914石英晶体振荡器 | Current-Supply(Max) | 2mA |
| Type类型 | TCXO | PackageHeight高度 | 1.50mm |
| Frequency频率 | 12.8 MHz | Termination 脚位 | 4 pad |
| 输出方式 Output： | Clipped Sine Wave | PackageType 封装类型 | 4-SMD |
| Voltage-Supply电压 | 3V | Packaging 包装 | TapeandReel |
| FrequencyStability频率稳定度 | ±2.5ppm | 安装方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 5.00mm x 3.20mm | 最小包装数MPQ： | 1000 |
.png)
.png)
FT5CNDPK12.8-T1,微型贴片晶振,FOX914石英振荡器
| FO7HSCBE25.0-T1 | Fox Electronics | F4105 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FT5HNBPK25.0-T1 | Fox Electronics | FOX924 | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK10.0-T1 | Fox Electronics | FOX924 | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.0-T1 | Fox Electronics | FOX924 | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.288-T1 | Fox Electronics | FOX924 | TCXO | 12.288 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK14.7456-T1 | Fox Electronics | FOX924 | TCXO | 14.7456 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK20.0-T1 | Fox Electronics | FOX924 | TCXO | 20 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK27.0-T1 | Fox Electronics | FOX924 | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT9CVDPH20.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO3HSKDM24.0-T2 | Fox Electronics | F310R | XO (Standard) | 24 MHz | HCMOS | 1.8V | ±25ppm |
| FO3HSKDM33.333-T2 | Fox Electronics | F310R | XO (Standard) | 33.333 MHz | HCMOS | 1.8V | ±25ppm |
| FO7HSCAE50.0-T1 | Fox Electronics | F4100 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±100ppm |
| FT5CNDPK12.8-T1 | Fox Electronics | FOX914 | TCXO | 12.8 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT5HNBPK16.0-T1 | Fox Electronics | FOX924 | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HSCBE40.0-T2 | Fox Electronics | F335 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE33.333-T1 | Fox Electronics | F535L | XO (Standard) | 33.333 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK12.0-T1 | Fox Electronics | T3HN | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT3HNBPK27.0-T1 | Fox Electronics | T3HN | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HFCYM0.032768-T3 | Fox Electronics | F32K | XO (Standard) | 32.768 kHz | HCMOS | 3.3V | -170ppm, +10ppm |
| FO5HSCBE25.0-T1 | Fox Electronics | F535L | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE1.8432-T1 | Fox Electronics | O7HS | XO (Standard) | 1.8432 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBE50.0-T1 | Fox Electronics | O7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE25.0-T1 | Fox Electronics | O7HS | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBM50.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE48.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HHAAE1.8432-T1 | Fox Electronics | O7HH | XO (Standard) | 1.8432 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE32.0-T1 | Fox Electronics | O7HH | XO (Standard) | 32 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE50.0-T1 | Fox Electronics | O7HH | XO (Standard) | 50 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE40.0-T1 | Fox Electronics | O7HH | XO (Standard) | 40 MHz | HCMOS | 5V | ±100ppm |
| FT1MNTUM-38.4-T1 | Fox Electronics | FT1MN | TCXO | 38.4 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT3MNTUM-26.0-T1 | Fox Electronics | FT3MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT1MNTUM-26.0-T1 | Fox Electronics | FT1MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-32.0-T1 | Fox Electronics | FT2MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-30.0-T1 | Fox Electronics | FT2MN | TCXO | 30 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FO3HSCBE50.0-T1 | Fox Electronics | F335 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE3.6864-T1 | Fox Electronics | * | - | - | - | - | - |
| FO5HSCBE24.0-T1 | Fox Electronics | F535L | XO (Standard) | 24 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCBE20.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FT3HNBPK25.0-T1 | Fox Electronics | T3HN | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCAE40.0-T1 | Fox Electronics | F4100 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK16.0-T1 | Fox Electronics | T3HN | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCBE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±50ppm |
| FT3HNBPK10.0-T1 | Fox Electronics | T3HN | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HHAAE50.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FO7HHAAE16.0-T1 | Fox Electronics | F3345 | XO (Standard) | 16 MHz | HCMOS | 5V | ±100ppm |
| FO7HSCDE48.0-T1 | Fox Electronics | O7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±25ppm |
| FT5CNDPK20.0-T1 | Fox Electronics | FOX914 | TCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT3MNTUM-32.0-T1 | Fox Electronics | FT3MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT5HNBPK19.44-T1 | Fox Electronics | FOX924 | TCXO | 19.44 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT2MNTUM-40.0-T1 | Fox Electronics | FT2MN | TCXO | 40 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT9CVDPH10.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 10 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO2HSKBM25.0-T1 | Fox Electronics | FO2HS | XO (Standard) | 25 MHz | HCMOS | 1.8V | ±50ppm |
| FO3HSCBE12.0-T1 | Fox Electronics | F335 | XO (Standard) | 12 MHz | HCMOS | 3.3V | ±50ppm |
| FO3HSCBE25.0-T1 | Fox Electronics | F335 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE10.0-T1 | Fox Electronics | F535L | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE16.0-T1 | Fox Electronics | F535L | XO (Standard) | 16 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE48.0-T1 | Fox Electronics | F535L | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE50.0-T1 | Fox Electronics | F535L | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE10.0-T1 | Fox Electronics | F4100 | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±100ppm |
