首页进口晶振鸿星晶振E3SB24E00004XE,Hosonic品牌,6G光纤通道晶振

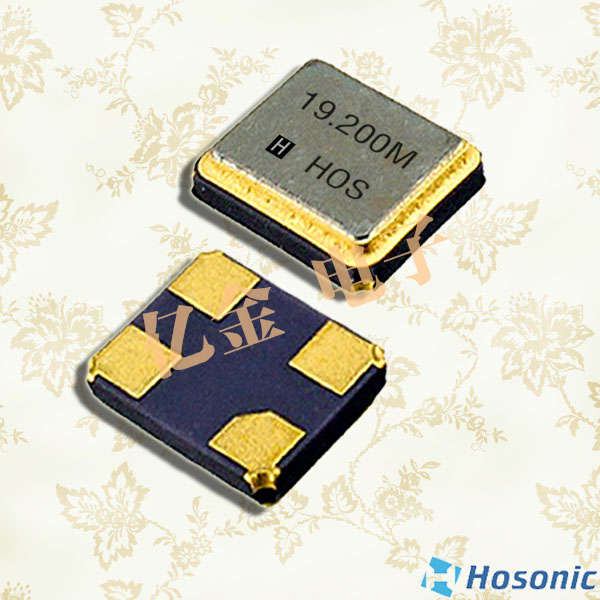

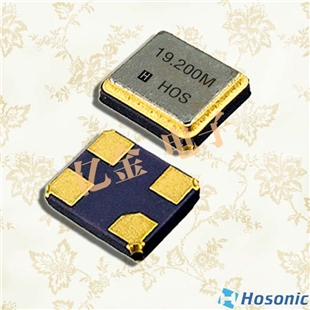

E3SB24E00004XE,Hosonic品牌,6G光纤通道晶振

  • 频率:24MHz
  • 尺寸:3.2×2.5mm
  • 应 用: 台湾Hosonic晶振,E3SB进口晶振,无源晶振,E3SB24E00004XE晶振,石英贴片晶振,3225mm晶振,四脚晶振,频率24MHz,负载16pF,工作温度-30~85°C,频率稳定性10ppm,耐高温晶振,低阻抗晶振,高品质晶振,6G光纤通道晶振,移动应用晶...
  • RoHS RoHS2

E3SB24E00004XE,Hosonic品牌,6G光纤通道晶振,台湾Hosonic晶振,E3SB进口晶振,无源晶振,E3SB24E00004XE晶振,石英贴片晶振,3225mm晶振,四脚晶振,频率24MHz,负载16pF,工作温度-30~85°C,频率稳定性10ppm,耐高温晶振,低阻抗晶振,高品质晶振,6G光纤通道晶振,移动应用晶振,数字视频广播晶振,工业控制系统晶振.
E3SB24E00004XE,Hosonic品牌,6G光纤通道晶振特点:
-紧凑而薄(3.2X2.5X0.75mm max.)
-优异的电气性能,办公自动化的理想选择;AV(视听),蓝牙和无线局域网应用
-优异的耐热性和抗震性。

-无铅,满足使用无铅焊料的回流剖面的要求

E3SB24E00004XE,Hosonic品牌,6G光纤通道晶振规格表

Item   Type E3SB
Frequency Range   F0 24 MHz
Mode of Vibration   Fundamental
Load Capacitance   CL 16 pF
Frequency Tolerance ΔF/ F0 ±10ppm (At 25℃)
Equivalent  Series Resistance ESR 50 Ω max.
Temperature Stability TC ±10ppm  (Refer to 25℃)
Operating Temperature Range TOPR -30~+85℃
Storage Temperature Range TSTG -55~+125℃
Shunt Capacitance C0 3pF max.
Insulator Resistance IR 500MΩ min. (At 100VDC)
Drive Level DL 100μW(200μW max.)
Aging Fa ±2ppm max. (At 25℃,First year)
Packing Unit   3000pcs/reel

E3SB24E00004XE,Hosonic品牌,6G光纤通道晶振尺寸图
原厂编码 制造厂家 型号 频率 负载电容 频率容差 频率稳定度
E3FB16.0000F18E33 Hosonic晶振 E3FB 16MHz 18pF ±30ppm ±30ppm
E3FB17.0000F18E33 Hosonic晶振 E3FB 17MHz 18pF ±30ppm ±30ppm
E3FB18.0000F18E33 Hosonic晶振 E3FB 18MHz 18pF ±30ppm ±30ppm
E3FB19.0000F18E33 Hosonic晶振 E3FB 19MHz 18pF ±30ppm ±30ppm
E3FB20.0000F18E33 Hosonic晶振 E3FB 20MHz 18pF ±30ppm ±30ppm
E3FB21.0000F18E33 Hosonic晶振 E3FB 21MHz 18pF ±30ppm ±30ppm
E3FB22.0000F18E33 Hosonic晶振 E3FB 22MHz 18pF ±30ppm ±30ppm
E3FB23.0000F18E33 Hosonic晶振 E3FB 23MHz 18pF ±30ppm ±30ppm
E3FB24.0000F18E33 Hosonic晶振 E3FB 24MHz 18pF ±30ppm ±30ppm
E3FB25.0000F18E33 Hosonic晶振 E3FB 25MHz 18pF ±30ppm ±30ppm
E3FB26.0000F18E33 Hosonic晶振 E3FB 26MHz 18pF ±30ppm ±30ppm
E3FB27.0000F18E33 Hosonic晶振 E3FB 27MHz 18pF ±30ppm ±30ppm
E3FB28.0000F18E33 Hosonic晶振 E3FB 28MHz 18pF ±30ppm ±30ppm
E3FB29.0000F18E33 Hosonic晶振 E3FB 29MHz 18pF ±30ppm ±30ppm
E3FB30.0000F18E33 Hosonic晶振 E3FB 30MHz 18pF ±30ppm ±30ppm
E3FB31.0000F18E33 Hosonic晶振 E3FB 31MHz 18pF ±30ppm ±30ppm
E3FB32.0000F18E33 Hosonic晶振 E3FB 32MHz 18pF ±30ppm ±30ppm
E3FB33.0000F18E33 Hosonic晶振 E3FB 33MHz 18pF ±30ppm ±30ppm
E3FB34.0000F18E33 Hosonic晶振 E3FB 34MHz 18pF ±30ppm ±30ppm
E3FB35.0000F18E33 Hosonic晶振 E3FB 35MHz 18pF ±30ppm ±30ppm
E3FB36.0000F18E33 Hosonic晶振 E3FB 36MHz 18pF ±30ppm ±30ppm
E3FB37.0000F18E33 Hosonic晶振 E3FB 37MHz 18pF ±30ppm ±30ppm
E3FB38.0000F18E33 Hosonic晶振 E3FB 38MHz 18pF ±30ppm ±30ppm
E3FB39.0000F18E33 Hosonic晶振 E3FB 39MHz 18pF ±30ppm ±30ppm
E3FB40.0000F18E33 Hosonic晶振 E3FB 40MHz 18pF ±30ppm ±30ppm
E3FB41.0000F18E33 Hosonic晶振 E3FB 41MHz 18pF ±30ppm ±30ppm
E3FB42.0000F18E33 Hosonic晶振 E3FB 42MHz 18pF ±30ppm ±30ppm
E3FB43.0000F18E33 Hosonic晶振 E3FB 43MHz 18pF ±30ppm ±30ppm
E3FB44.0000F18E33 Hosonic晶振 E3FB 44MHz 18pF ±30ppm ±30ppm
E3FB45.0000F18E33 Hosonic晶振 E3FB 45MHz 18pF ±30ppm ±30ppm
E3FB46.0000F18E33 Hosonic晶振 E3FB 46MHz 18pF ±30ppm ±30ppm
E3FB47.0000F18E33 Hosonic晶振 E3FB 47MHz 18pF ±30ppm ±30ppm
E3FB48.0000F18E33 Hosonic晶振 E3FB 48MHz 18pF ±30ppm ±30ppm
E3FB49.0000F18E33 Hosonic晶振 E3FB 49MHz 18pF ±30ppm ±30ppm
E3FB50.0000F18E33 Hosonic晶振 E3FB 50MHz 18pF ±30ppm ±30ppm
E3FB51.0000F18E33 Hosonic晶振 E3FB 51MHz 18pF ±30ppm ±30ppm
E3FB52.0000F18E33 Hosonic晶振 E3FB 52MHz 18pF ±30ppm ±30ppm
E3FB53.0000F18E33 Hosonic晶振 E3FB 53MHz 18pF ±30ppm ±30ppm
E3FB54.0000F18E33 Hosonic晶振 E3FB 54MHz 18pF ±30ppm ±30ppm
E3FB55.0000F18E33 Hosonic晶振 E3FB 55MHz 18pF ±30ppm ±30ppm
E3FB56.0000F18E33 Hosonic晶振 E3FB 56MHz 18pF ±30ppm ±30ppm
E3FB57.0000F18E33 Hosonic晶振 E3FB 57MHz 18pF ±30ppm ±30ppm
E3FB58.0000F18E33 Hosonic晶振 E3FB 58MHz 18pF ±30ppm ±30ppm
E3FB59.0000F18E33 Hosonic晶振 E3FB 59MHz 18pF ±30ppm ±30ppm
E3FB60.0000F18E33 Hosonic晶振 E3FB 60MHz 18pF ±30ppm ±30ppm
E3FB61.0000F18E33 Hosonic晶振 E3FB 61MHz 18pF ±30ppm ±30ppm
E3FB62.0000F18E33 Hosonic晶振 E3FB 62MHz 18pF ±30ppm ±30ppm
E3FB63.0000F18E33 Hosonic晶振 E3FB 63MHz 18pF ±30ppm ±30ppm
E3FB64.0000F18E33 Hosonic晶振 E3FB 64MHz 18pF ±30ppm ±30ppm
E3FB65.0000F18E33 Hosonic晶振 E3FB 65MHz 18pF ±30ppm ±30ppm
E3FB66.0000F18E33 Hosonic晶振 E3FB 66MHz 18pF ±30ppm ±30ppm
E2SB10.0000F10E12 Hosonic晶振 E2SB 10MHz 10pF ±10ppm ±10ppm
E2SB12.0000F10E11 Hosonic晶振 E2SB 12MHz 10pF ±10ppm ±10ppm
E2SB16.0000F10E12 Hosonic晶振 E2SB 16MHz 10pF ±10ppm ±10ppm
E2SB17.0000F10E12 Hosonic晶振 E2SB 17MHz 10pF ±10ppm ±10ppm
E2SB18.4320F10E12 Hosonic晶振 E2SB 18.432MHz 10pF ±10ppm ±10ppm
E2SB18.0000F10E12 Hosonic晶振 E2SB 18MHz 10pF ±10ppm ±10ppm
E2SB19.0000F10E12 Hosonic晶振 E2SB 19MHz 10pF ±10ppm ±10ppm
E2SB20.0000F10E12 Hosonic晶振 E2SB 20MHz 10pF ±10ppm ±10ppm
E2SB21.0000F10E12 Hosonic晶振 E2SB 21MHz 10pF ±10ppm ±10ppm
E2SB22.0000F10E12 Hosonic晶振 E2SB 22MHz 10pF ±10ppm ±10ppm
E2SB23.0000F10E12 Hosonic晶振 E2SB 23MHz 10pF ±10ppm ±10ppm
E2SB24.0000F10E12 Hosonic晶振 E2SB 24MHz 10pF ±10ppm ±10ppm
E2SB25.0000F10E12 Hosonic晶振 E2SB 25MHz 10pF ±10ppm ±10ppm
E49A12E00000ME Hosonic晶振 E49A 12 MHz 20 pF ±30 ppm ±30 ppm
E49A13E00000ME Hosonic晶振 E49A 13 MHz 20 pF ±30 ppm ±30 ppm
E49A14E00000ME Hosonic晶振 E49A 14 MHz 20 pF ±30 ppm ±30 ppm
E49A15E00000ME Hosonic晶振 E49A 15 MHz 20 pF ±30 ppm ±30 ppm
E49A16E00000ME Hosonic晶振 E49A 16 MHz 20 pF ±30 ppm ±30 ppm
E49A17E00000ME Hosonic晶振 E49A 17 MHz 20 pF ±30 ppm ±30 ppm
E49A18E00000ME Hosonic晶振 E49A 18 MHz 20 pF ±30 ppm ±30 ppm
E49A19E00000ME Hosonic晶振 E49A 19 MHz 20 pF ±30 ppm ±30 ppm
E49A20E00000ME Hosonic晶振 E49A 20 MHz 20 pF ±30 ppm ±30 ppm
E49A21E00000ME Hosonic晶振 E49A 21 MHz 20 pF ±30 ppm ±30 ppm
E49A22E00000ME Hosonic晶振 E49A 22 MHz 20 pF ±30 ppm ±30 ppm
E49A23E00000ME Hosonic晶振 E49A 23 MHz 20 pF ±30 ppm ±30 ppm
E49A24E00000ME Hosonic晶振 E49A 24 MHz 20 pF ±30 ppm ±30 ppm
E49A25E00000ME Hosonic晶振 E49A 25 MHz 20 pF ±30 ppm ±30 ppm
E49A26E00000ME Hosonic晶振 E49A 26 MHz 20 pF ±30 ppm ±30 ppm
E49A27E00000ME Hosonic晶振 E49A 27 MHz 20 pF ±30 ppm ±30 ppm
E49A28E00000ME Hosonic晶振 E49A 28 MHz 20 pF ±30 ppm ±30 ppm
E49A29E00000ME Hosonic晶振 E49A 29 MHz 20 pF ±30 ppm ±30 ppm
E49A30E00000ME Hosonic晶振 E49A 30 MHz 20 pF ±30 ppm ±30 ppm
E49A31E00000ME Hosonic晶振 E49A 31 MHz 20 pF ±30 ppm ±30 ppm
E49A32E00000ME Hosonic晶振 E49A 32 MHz 20 pF ±30 ppm ±30 ppm
E49A33E00000ME Hosonic晶振 E49A 33 MHz 20 pF ±30 ppm ±30 ppm
E49A34E00000ME Hosonic晶振 E49A 34 MHz 20 pF ±30 ppm ±30 ppm
E49A35E00000ME Hosonic晶振 E49A 35 MHz 20 pF ±30 ppm ±30 ppm
E49A36E00000ME Hosonic晶振 E49A 36 MHz 20 pF ±30 ppm ±30 ppm
E49A37E00000ME Hosonic晶振 E49A 37 MHz 20 pF ±30 ppm ±30 ppm
E49A38E00000ME Hosonic晶振 E49A 38 MHz 20 pF ±30 ppm ±30 ppm
E49A39E00000ME Hosonic晶振 E49A 39 MHz 20 pF ±30 ppm ±30 ppm
E49A40E00000ME Hosonic晶振 E49A 40 MHz 20 pF ±30 ppm ±30 ppm
E49A41E00000ME Hosonic晶振 E49A 41 MHz 20 pF ±30 ppm ±30 ppm
E49A42E00000ME Hosonic晶振 E49A 42 MHz 20 pF ±30 ppm ±30 ppm
E49A43E00000ME Hosonic晶振 E49A 43 MHz 20 pF ±30 ppm ±30 ppm
E49A44E00000ME Hosonic晶振 E49A 44 MHz 20 pF ±30 ppm ±30 ppm
E49A45E00000ME Hosonic晶振 E49A 45 MHz 20 pF ±30 ppm ±30 ppm
E49A46E00000ME Hosonic晶振 E49A 46 MHz 20 pF ±30 ppm ±30 ppm
E49A47E00000ME Hosonic晶振 E49A 47 MHz 20 pF ±30 ppm ±30 ppm
E49A48E00000ME Hosonic晶振 E49A 48 MHz 20 pF ±30 ppm ±30 ppm
E49A49E00000ME Hosonic晶振 E49A 49 MHz 20 pF ±30 ppm ±30 ppm
E49A50E00000ME Hosonic晶振 E49A 50 MHz 20 pF ±30 ppm ±30 ppm
E49A51E00000ME Hosonic晶振 E49A 51 MHz 20 pF ±30 ppm ±30 ppm
E49A52E00000ME Hosonic晶振 E49A 52 MHz 20 pF ±30 ppm ±30 ppm
E49A53E00000ME Hosonic晶振 E49A 53 MHz 20 pF ±30 ppm ±30 ppm
E49A54E00000ME Hosonic晶振 E49A 54 MHz 20 pF ±30 ppm ±30 ppm
E49A55E00000ME Hosonic晶振 E49A 55 MHz 20 pF ±30 ppm ±30 ppm
E49A56E00000ME Hosonic晶振 E49A 56 MHz 20 pF ±30 ppm ±30 ppm
E49A57E00000ME Hosonic晶振 E49A 57 MHz 20 pF ±30 ppm ±30 ppm
E2SB26.0000F10E12 Hosonic晶振 E2SB 26MHz 10pF ±10ppm ±10ppm
E2SB27.0000F10E12 Hosonic晶振 E2SB 27MHz 10pF ±10ppm ±10ppm
E2SB28.0000F10E12 Hosonic晶振 E2SB 28MHz 10pF ±10ppm ±10ppm
E2SB29.0000F10E12 Hosonic晶振 E2SB 29MHz 10pF ±10ppm ±10ppm
E2SB30.0000F10E12 Hosonic晶振 E2SB 30MHz 10pF ±10ppm ±10ppm
E2SB31.0000F10E12 Hosonic晶振 E2SB 31MHz 10pF ±10ppm ±10ppm
E2SB32.0000F10E12 Hosonic晶振 E2SB 32MHz 10pF ±10ppm ±10ppm
E2SB33.0000F10E12 Hosonic晶振 E2SB 33MHz 10pF ±10ppm ±10ppm
E2SB34.0000F10E12 Hosonic晶振 E2SB 34MHz 10pF ±10ppm ±10ppm
E2SB35.0000F10E12 Hosonic晶振 E2SB 35MHz 10pF ±10ppm ±10ppm
E2SB36.0000F10E12 Hosonic晶振 E2SB 36MHz 10pF ±10ppm ±10ppm
E2SB37.0000F10E12 Hosonic晶振 E2SB 37MHz 10pF ±10ppm ±10ppm
E2SB38.0000F10E12 Hosonic晶振 E2SB 38MHz 10pF ±10ppm ±10ppm
E2SB39.0000F10E12 Hosonic晶振 E2SB 39MHz 10pF ±10ppm ±10ppm
E2SB40.0000F10E12 Hosonic晶振 E2SB 40MHz 10pF ±10ppm ±10ppm
E2SB41.0000F10E12 Hosonic晶振 E2SB 41MHz 10pF ±10ppm ±10ppm
E2SB42.0000F10E12 Hosonic晶振 E2SB 42MHz 10pF ±10ppm ±10ppm
E2SB43.0000F10E12 Hosonic晶振 E2SB 43MHz 10pF ±10ppm ±10ppm
E2SB44.0000F10E12 Hosonic晶振 E2SB 44MHz 10pF ±10ppm ±10ppm
E2SB45.0000F10E12 Hosonic晶振 E2SB 45MHz 10pF ±10ppm ±10ppm
E2SB46.0000F10E12 Hosonic晶振 E2SB 46MHz 10pF ±10ppm ±10ppm
E2SB47.0000F10E12 Hosonic晶振 E2SB 47MHz 10pF ±10ppm ±10ppm
E2SB48.0000F10E12 Hosonic晶振 E2SB 48MHz 10pF ±10ppm ±10ppm
E2SB49.0000F10E12 Hosonic晶振 E2SB 49MHz 10pF ±10ppm ±10ppm
E2SB50.0000F10E12 Hosonic晶振 E2SB 50MHz 10pF ±10ppm ±10ppm
E2SB51.0000F10E12 Hosonic晶振 E2SB 51MHz 10pF ±10ppm ±10ppm
E2SB52.0000F10E12 Hosonic晶振 E2SB 52MHz 10pF ±10ppm ±10ppm
E2SB53.0000F10E12 Hosonic晶振 E2SB 53MHz 10pF ±10ppm ±10ppm
E2SB54.0000F10E12 Hosonic晶振 E2SB 54MHz 10pF ±10ppm ±10ppm
E2SB55.0000F10E12 Hosonic晶振 E2SB 55MHz 10pF ±10ppm ±10ppm
E2SB56.0000F10E12 Hosonic晶振 E2SB 56MHz 10pF ±10ppm ±10ppm
E3SB13.0000F18E22 Hosonic晶振 E3SB 13 MHz 18 pF ±20 ppm ±20 ppm
E3SB14.0000F18E22 Hosonic晶振 E3SB 14 MHz 18 pF ±20 ppm ±20 ppm
E3SB15.0000F18E22 Hosonic晶振 E3SB 15 MHz 18 pF ±20 ppm ±20 ppm
E3SB16.0000F18E22 Hosonic晶振 E3SB 16 MHz 18 pF ±20 ppm ±20 ppm
E3SB17.0000F18E22 Hosonic晶振 E3SB 17 MHz 18 pF ±20 ppm ±20 ppm
E3SB18.0000F18E22 Hosonic晶振 E3SB 18 MHz 18 pF ±20 ppm ±20 ppm
E3SB19.0000F18E22 Hosonic晶振 E3SB 19 MHz 18 pF ±20 ppm ±20 ppm
E3SB20.0000F18E22 Hosonic晶振 E3SB 20 MHz 18 pF ±20 ppm ±20 ppm
E3SB21.0000F18E22 Hosonic晶振 E3SB 21 MHz 18 pF ±20 ppm ±20 ppm
E3SB22.0000F18E22 Hosonic晶振 E3SB 22 MHz 18 pF ±20 ppm ±20 ppm
E3SB23.0000F18E22 Hosonic晶振 E3SB 23 MHz 18 pF ±20 ppm ±20 ppm
E3SB24.0000F18E22 Hosonic晶振 E3SB 24 MHz 18 pF ±20 ppm ±20 ppm
E3SB25.0000F18E22 Hosonic晶振 E3SB 25 MHz 18 pF ±20 ppm ±20 ppm
E3SB26.0000F18E22 Hosonic晶振 E3SB 26 MHz 18 pF ±20 ppm ±20 ppm
E3SB27.0000F18E22 Hosonic晶振 E3SB 27 MHz 18 pF ±20 ppm ±20 ppm
E3SB28.0000F18E22 Hosonic晶振 E3SB 28 MHz 18 pF ±20 ppm ±20 ppm
E3SB29.0000F18E22 Hosonic晶振 E3SB 29 MHz 18 pF ±20 ppm ±20 ppm
E3SB30.0000F18E22 Hosonic晶振 E3SB 30 MHz 18 pF ±20 ppm ±20 ppm
E3SB31.0000F18E22 Hosonic晶振 E3SB 31 MHz 18 pF ±20 ppm ±20 ppm
E3SB32.0000F18E22 Hosonic晶振 E3SB 32 MHz 18 pF ±20 ppm ±20 ppm
E3SB33.0000F18E22 Hosonic晶振 E3SB 33 MHz 18 pF ±20 ppm ±20 ppm
E3SB34.0000F18E22 Hosonic晶振 E3SB 34 MHz 18 pF ±20 ppm ±20 ppm
E3SB35.0000F18E22 Hosonic晶振 E3SB 35 MHz 18 pF ±20 ppm ±20 ppm
E3SB36.0000F18E22 Hosonic晶振 E3SB 36 MHz 18 pF ±20 ppm ±20 ppm
E3SB37.0000F18E22 Hosonic晶振 E3SB 37 MHz 18 pF ±20 ppm ±20 ppm
E3SB38.0000F18E22 Hosonic晶振 E3SB 38 MHz 18 pF ±20 ppm ±20 ppm
E3SB39.0000F18E22 Hosonic晶振 E3SB 39 MHz 18 pF ±20 ppm ±20 ppm
E3SB40.0000F18E22 Hosonic晶振 E3SB 40 MHz 18 pF ±20 ppm ±20 ppm
E3SB41.0000F18E22 Hosonic晶振 E3SB 41 MHz 18 pF ±20 ppm ±20 ppm
E3SB42.0000F18E22 Hosonic晶振 E3SB 42 MHz 18 pF ±20 ppm ±20 ppm
E3SB43.0000F18E22 Hosonic晶振 E3SB 43 MHz 18 pF ±20 ppm ±20 ppm
E3SB44.0000F18E22 Hosonic晶振 E3SB 44 MHz 18 pF ±20 ppm ±20 ppm
E3SB45.0000F18E22 Hosonic晶振 E3SB 45MHz 18 pF ±20 ppm ±20 ppm
E3SB46.0000F18E22 Hosonic晶振 E3SB 46MHz 18 pF ±20 ppm ±20 ppm
E3SB47.0000F18E22 Hosonic晶振 E3SB 47MHz 18 pF ±20 ppm ±20 ppm
E3SB48.0000F18E22 Hosonic晶振 E3SB 48MHz 18 pF ±20 ppm ±20 ppm
E3SB49.0000F18E22 Hosonic晶振 E3SB 49MHz 18 pF ±20 ppm ±20 ppm
E3SB50.0000F18E22 Hosonic晶振 E3SB 50MHz 18 pF ±20 ppm ±20 ppm
E3SB51.0000F18E22 Hosonic晶振 E3SB 51MHz 18 pF ±20 ppm ±20 ppm
E3SB52.0000F18E22 Hosonic晶振 E3SB 52MHz 18 pF ±20 ppm ±20 ppm
E3SB53.0000F18E22 Hosonic晶振 E3SB 53MHz 18 pF ±20 ppm ±20 ppm
E3SB54.0000F18E22 Hosonic晶振 E3SB 54MHz 18 pF ±20 ppm ±20 ppm
E3SB55.0000F18E22 Hosonic晶振 E3SB 55MHz 18 pF ±20 ppm ±20 ppm
E3SB56.0000F18E22 Hosonic晶振 E3SB 56MHz 18 pF ±20 ppm ±20 ppm
E49A12E00000ME Hosonic晶振 E49A 12 MHz 20 pF ±30 ppm ±30 ppm
E49A13E00000ME Hosonic晶振 E49A 13 MHz 20 pF ±30 ppm ±30 ppm
E49A14E00000ME Hosonic晶振 E49A 14 MHz 20 pF ±30 ppm ±30 ppm
E49A15E00000ME Hosonic晶振 E49A 15 MHz 20 pF ±30 ppm ±30 ppm
E49A16E00000ME Hosonic晶振 E49A 16 MHz 20 pF ±30 ppm ±30 ppm
E49A17E00000ME Hosonic晶振 E49A 17 MHz 20 pF ±30 ppm ±30 ppm
E49A18E00000ME Hosonic晶振 E49A 18 MHz 20 pF ±30 ppm ±30 ppm
E49A19E00000ME Hosonic晶振 E49A 19 MHz 20 pF ±30 ppm ±30 ppm
E49A20E00000ME Hosonic晶振 E49A 20 MHz 20 pF ±30 ppm ±30 ppm
E49A21E00000ME Hosonic晶振 E49A 21 MHz 20 pF ±30 ppm ±30 ppm
E49A22E00000ME Hosonic晶振 E49A 22 MHz 20 pF ±30 ppm ±30 ppm
E49A23E00000ME Hosonic晶振 E49A 23 MHz 20 pF ±30 ppm ±30 ppm
E49A24E00000ME Hosonic晶振 E49A 24 MHz 20 pF ±30 ppm ±30 ppm
E49A25E00000ME Hosonic晶振 E49A 25 MHz 20 pF ±30 ppm ±30 ppm
E49A26E00000ME Hosonic晶振 E49A 26 MHz 20 pF ±30 ppm ±30 ppm
E49A27E00000ME Hosonic晶振 E49A 27 MHz 20 pF ±30 ppm ±30 ppm
E49A28E00000ME Hosonic晶振 E49A 28 MHz 20 pF ±30 ppm ±30 ppm
E49A29E00000ME Hosonic晶振 E49A 29 MHz 20 pF ±30 ppm ±30 ppm
E49A30E00000ME Hosonic晶振 E49A 30 MHz 20 pF ±30 ppm ±30 ppm
E49A31E00000ME Hosonic晶振 E49A 31 MHz 20 pF ±30 ppm ±30 ppm
E49A32E00000ME Hosonic晶振 E49A 32 MHz 20 pF ±30 ppm ±30 ppm
E49A33E00000ME Hosonic晶振 E49A 33 MHz 20 pF ±30 ppm ±30 ppm
E49A34E00000ME Hosonic晶振 E49A 34 MHz 20 pF ±30 ppm ±30 ppm
E49A35E00000ME Hosonic晶振 E49A 35 MHz 20 pF ±30 ppm ±30 ppm
E49A36E00000ME Hosonic晶振 E49A 36 MHz 20 pF ±30 ppm ±30 ppm
E49A37E00000ME Hosonic晶振 E49A 37 MHz 20 pF ±30 ppm ±30 ppm
E49A38E00000ME Hosonic晶振 E49A 38 MHz 20 pF ±30 ppm ±30 ppm
E49A39E00000ME Hosonic晶振 E49A 39 MHz 20 pF ±30 ppm ±30 ppm
E49A40E00000ME Hosonic晶振 E49A 40 MHz 20 pF ±30 ppm ±30 ppm
E49A41E00000ME Hosonic晶振 E49A 41 MHz 20 pF ±30 ppm ±30 ppm
E49A42E00000ME Hosonic晶振 E49A 42 MHz 20 pF ±30 ppm ±30 ppm
E49A43E00000ME Hosonic晶振 E49A 43 MHz 20 pF ±30 ppm ±30 ppm
E49A44E00000ME Hosonic晶振 E49A 44 MHz 20 pF ±30 ppm ±30 ppm
E49A45E00000ME Hosonic晶振 E49A 45MHz 20 pF ±30 ppm ±30 ppm
E49A46E00000ME Hosonic晶振 E49A 46MHz 20 pF ±30 ppm ±30 ppm
E49A47E00000ME Hosonic晶振 E49A 47MHz 20 pF ±30 ppm ±30 ppm
E49A48E00000ME Hosonic晶振 E49A 48MHz 20 pF ±30 ppm ±30 ppm
E49B12E000022E Hosonic晶振 E49B 12 MHz 10 pF ±30 ppm ±30 ppm
E49B13E000022E Hosonic晶振 E49B 13 MHz 10 pF ±30 ppm ±30 ppm
E49B14E000022E Hosonic晶振 E49B 14 MHz 10 pF ±30 ppm ±30 ppm
E49B15E000022E Hosonic晶振 E49B 15 MHz 10 pF ±30 ppm ±30 ppm
E49B16E000022E Hosonic晶振 E49B 16 MHz 10 pF ±30 ppm ±30 ppm
E49B17E000022E Hosonic晶振 E49B 17 MHz 10 pF ±30 ppm ±30 ppm
E49B18E000022E Hosonic晶振 E49B 18 MHz 10 pF ±30 ppm ±30 ppm
E49B19E000022E Hosonic晶振 E49B 19 MHz 10 pF ±30 ppm ±30 ppm
E49B20E000022E Hosonic晶振 E49B 20 MHz 10 pF ±30 ppm ±30 ppm
E49B21E000022E Hosonic晶振 E49B 21 MHz 10 pF ±30 ppm ±30 ppm
E49B22E000022E Hosonic晶振 E49B 22 MHz 10 pF ±30 ppm ±30 ppm
E49B23E000022E Hosonic晶振 E49B 23 MHz 10 pF ±30 ppm ±30 ppm
公司:深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话:0755-27876565
手机:18924600166
QQ:857950243
邮箱:yijindz@163.com
网站:http://www.yijindz.com
地址:广东省深圳市宝安区新安107国道旁

相关产品

诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴:
深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
kf
kf
close
kf 亿金微信号
