Jauch品牌,O 40.0-JV53-C-3.3-10-T1-LF,6G无线网络晶振

  • 频率:40MHz
  • 尺寸:5.0×3.2mm
  • 应 用: Jauch品牌,JV53有源晶振,O 40.0-JV53-C-3.3-10-T1-LF晶振,VCXO晶振,5032mm晶振,SPXO晶体振荡器,石英贴片晶振,频率40MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,高稳定性晶振,高品质晶振,低老化晶振,6G无线网络晶...
  • RoHS RoHS2

Jauch品牌,O 40.0-JV53-C-3.3-10-T1-LF,6G无线网络晶振,Jauch品牌,JV53有源晶振,O 40.0-JV53-C-3.3-10-T1-LF晶振,VCXO晶振,5032mm晶振,SPXO晶体振荡器,石英贴片晶振,频率40MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,高稳定性晶振,高品质晶振,低老化晶振,6G无线网络晶振,电信交换机晶振,调制解调器晶振,航空电子设备晶振.
Jauch品牌,O 40.0-JV53-C-3.3-10-T1-LF,6G无线网络晶振特点:
-SMD电压控制晶体振荡器,5.0 x 3.2 mm
-拉力范围可达±100 ppm min。
-陶瓷/金属封装

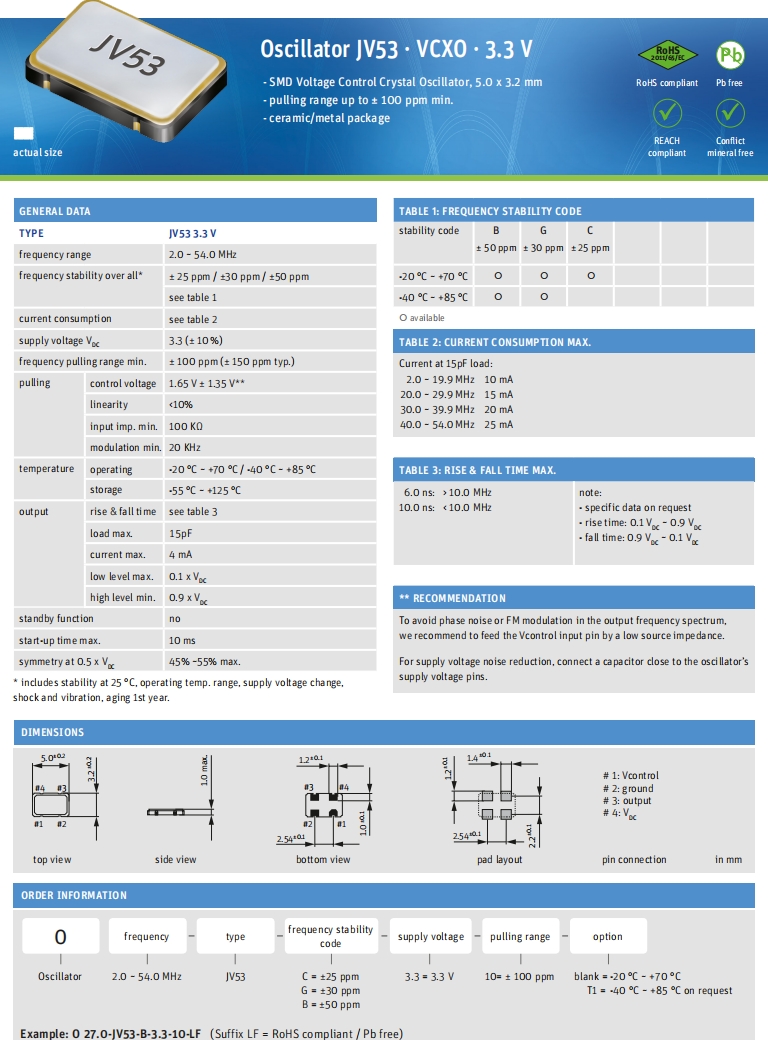

Jauch品牌,O 40.0-JV53-C-3.3-10-T1-LF,6G无线网络晶振规格表

TYPE JV53
frequency range 40MHz
frequency stability over all* ± 25 ppm
current consumption 25.0 mA (40.0 ~ 54.0MHz)
supply voltage VDC 3.3V (±10%)
frequency pulling range min ±100 ppm
pulling control voltage 1.65 V ± 1.35 V**
linearity < 10 %
input imp. min
100 KΩ
modulation min.
20 kHz
temperature operating -40°C ~ +85 °C
storage -55 °C ~ +125 °C
output rise & fall time 6.0 ns max(> 10.0 MHz)
load max 15 pF
current max 4 mA
low level max
0.1 x VDC
high level min.
0.9 x VDC
standby function no
start-up time max 10 ms
symmetry at 0.5 x VDC. 45 % ~ 55 % max.

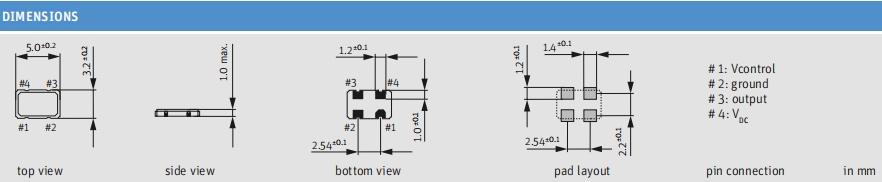

Jauch品牌,O 40.0-JV53-C-3.3-10-T1-LF,6G无线网络晶振尺寸图
Jauch晶振原厂编码 制造商 型号 频率 频率容差 负载电容 工作温度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF -20°C ~ 70°C
公司:深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话:0755-27876565
手机:18924600166
QQ:857950243
邮箱:yijindz@163.com
网站:http://www.yijindz.com
地址:广东省深圳市宝安区新安107国道旁

Jauch温补晶振,O 26.0-JT53C-A-G-3.3-LF,6G移动无线电晶振,JAUCH温补晶振,进口有源晶振,JT53C石英晶振,O 26.0-JT53C-A-G-3.3-LF晶振,5032mm晶振,SPXO晶体振荡器,TCXO晶振,频率26MHz,电压3.3V,工作温度-30~75°C,频率稳定性2.5ppm,高品质晶振,高精度晶振,低抖动晶振,6G移动无线电晶振,测试与测量仪器晶振,数据中心晶振,高速转换器晶振.
Jauch温补晶振,O 26.0-JT53C-A-G-3.3-LF,6G移动无线电晶振特点:
-TCXO带HCMOS输出,5.0 x 3.2 mm
-极好的相位噪声
-工作温度范围-40℃~ +85℃
-陶瓷/金属封装

Jauch温补晶振,O 26.0-JT53C-A-G-3.3-LF,6G移动无线电晶振规格表

TYPE JT53C
frequency range 26MHz
frequency stability

at +25°℃ ± 2.0 ppm (incl. 2x reflow)
temperature ±2.5 ppm (others on request)
aging hrst year ±1.0 ppm
supply voltage ±0.2 ppm (at VDC ±5%)
load change ±0.2ppm
current consumption see table 1
supply voltage Vae 3.3V (±5%)
temperature operating -30℃-+75℃
storage -40℃-+105℃
output

rise & fall time 5.0 ns max
load max 15 pF
current max 4.0mA
low level max
0.1 x VDC
high level min.
0.9 x VDC
harmonics distortion max. -5.0 dBC
symmetry at 0.5x V. 45%-55% max
start-up time max 3ms
standby current max 10µA
output enable time max. 3 ms
output disable time max. 250ns
Jitter 1 σ
3.0 ps
phase jitter 12kHz-20 MHz <0.35 ps RMS max./0.2 ps RMS typ

Jauch温补晶振,O 26.0-JT53C-A-G-3.3-LF,6G移动无线电晶振尺寸图
Jauch晶振原厂编码 制造商 型号 频率 频率容差 负载电容 工作温度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF -40°C ~ 125°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF -20°C ~ 70°C
公司:深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话:0755-27876565
手机:18924600166
QQ:857950243
邮箱:yijindz@163.com
网站:http://www.yijindz.com
地址:广东省深圳市宝安区新安107国道旁

相关产品

诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴:
深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
kf
kf
close
kf 亿金微信号
