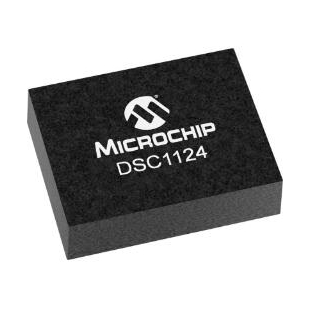

Microchip品牌-DSC1124DE1-125.0000-6G以太网晶振

  • 频率:125MHz
  • 尺寸:2.5×2.0mm
  • 应 用: Microchip晶振,DSC1124进口有源晶振,DSC1124DE1-125.0000晶振,石英晶体振荡器,2520mm晶振,HCSL差分输出晶振,六脚贴片晶振,SMD晶振,频率125MHz,电压3.3V,工作温度-20~70°C,频率稳定性50ppm,轻薄小晶振,高可靠性晶振,低...
  • RoHS RoHS2

Microchip品牌-DSC1124DE1-125.0000-6G以太网晶振,Microchip晶振,DSC1124进口有源晶振,DSC1124DE1-125.0000晶振,石英晶体振荡器,2520mm晶振,HCSL差分输出晶振,六脚贴片晶振,SMD晶振,频率125MHz,电压3.3V,工作温度-20~70°C,频率稳定性50ppm,轻薄小晶振,高可靠性晶振,低相位抖动晶振,6G以太网设备晶振,通信设备晶振,无线局域网晶振,家用网关晶振.
Microchip品牌-DSC1124DE1-125.0000-6G以太网晶振特点:
•低RMS相位抖动:<1 ps(类型)
•高稳定性:±10 ppm,±20 ppm,±25 ppm,±50 ppm
•宽温度范围:
-Ext.工业:- 40°C至+105°C
-工业:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高电源噪声抑制:-50 dBc
•宽频率范围:2.3 MHz至460 MHz
•小的行业标准足迹
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•低电流消耗
•电源范围2.25至3.63V
•待机和输出使能功能
•无铅,符合RoHS标准

Microchip品牌-DSC1124DE1-125.0000-6G以太网晶振规格表
项目 规格说明 条件
额定频率 125MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V
储存温度 -55℃~+150℃ 裸存
工作温度 -20℃~ +70℃
频率稳定度 ±50ppm 包括由初始公差、温度和电源电压引起的频率变化
老化 ±5ppm 1 year @ +25°C
电流 42mA  Max
Output Enabled, RL = 50Ω
负载 15pf
输出逻辑电平高(VOH) 0.725V  Min
Output logic high, RL = 50Ω
输出逻辑电平低(VOL) 0.1V Max
Output logic low
输出上升下降时间 200ps Max  20%/80%
RL = 50Ω,CL=15pF
占空比 48%~52%
输入逻辑电平高(VIH) 0.75×VDD Min
Input  logic  high
输入逻辑电平低(VIL) 0.25x VDD  Max
Input  logic  low
起始时间 5 ms Max T = +25°C
周期抖动  2.5psRMS
-
集成相位噪声
2psRMS
12 kHz to 20 MHz @ 156.25 MHz

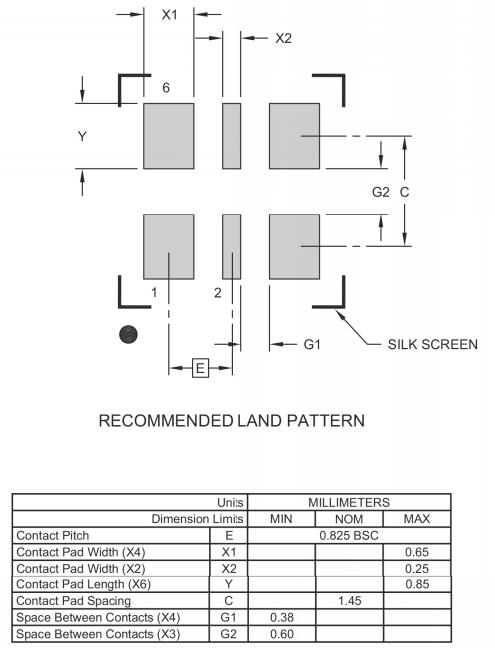

Microchip品牌-DSC1124DE1-125.0000-6G以太网晶振尺寸图



原厂代码 晶振品牌 型号 频率 电压 尺寸
DSC1124CI5-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104BE2-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI2-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI5-125.0000 Microchip Technology DSC1104 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CE1-010.2400 Microchip Technology DSC1124 10.24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124BI1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124NE1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BI2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124BI2-125.0000 Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CE1-010.2400T Microchip Technology DSC1124 10.24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124BE2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BE2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI1-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104BE2-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1104DI1-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DI1-156.2500T Microchip Technology DSC1104 156.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DI1-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DI1-156.2500 Microchip Technology DSC1104 156.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124NI1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124NI1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BI2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI2-125.0000T Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI2-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124NE1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124CI2-200.0000 Microchip Technology DSC1124 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124NI1-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124NI1-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1104AI2-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124CI2-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI5-125.0000T Microchip Technology DSC1104 125MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104BI5-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1104BI5-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CL2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CL2-200.0000T Microchip Technology DSC1124 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CL2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CL2-200.0000 Microchip Technology DSC1124 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124BI5-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CE1-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124NL2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1104NI2-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1104NI2-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1104DL5-040.0000 Microchip Technology DSC1104 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DL5-040.0000T Microchip Technology DSC1104 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124NL2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124AI1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124AL2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124CI2-048.0000T Microchip Technology DSC1124 48MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI2-200.0000T Microchip Technology DSC1124 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CE1-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124AI1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124AL2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BI2-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124DI2-100.0050 Microchip Technology DSC1124 100.005MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DE1-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DE1-125.0000T Microchip Technology DSC1104 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124AI2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BE1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BE1-125.0000T Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CE1-050.0000T Microchip Technology DSC1124 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CE1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2422T Microchip Technology DSC1124 156.2422MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2578T Microchip Technology DSC1124 156.2578MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124DE1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124DE1-125.0000T Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DE1-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DE1-125.0000 Microchip Technology DSC1104 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124AI2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BE1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BE1-125.0000 Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CE1-050.0000 Microchip Technology DSC1124 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CE1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2422 Microchip Technology DSC1124 156.2422MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2578 Microchip Technology DSC1124 156.2578MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124DE1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124DE1-125.0000 Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104BE1-156.2500 Microchip Technology DSC1104 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1104BE1-156.2500T Microchip Technology DSC1104 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1104CI2-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI2-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI5-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI5-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104DI5-147.4560 Microchip Technology DSC1104 147.456MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DI5-147.4560T Microchip Technology DSC1104 147.456MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124BE1-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BE1-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-148.3516 Microchip Technology DSC1124 148.3516MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-148.3516T Microchip Technology DSC1124 148.3516MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-148.5000 Microchip Technology DSC1124 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-148.5000T Microchip Technology DSC1124 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
