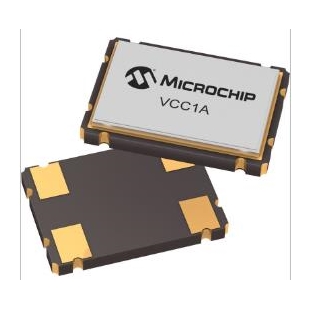

    VCC1A-F3V-24M5760000TR-Microchip品牌-6G基站晶振

    • 频率：24.576MHz
    • 尺寸：7.0×5.0mm
    • 应　用： Microchip晶振,VCC1A振荡器,进口有源晶振,VCC1A-F3V-24M5760000TR晶振,7050mm晶振,CMOS输出晶振,石英晶体振荡器,四脚贴片晶振,SMD晶体,频率24.576MHz,电压3.3V,工作温度-40~125°C,频率稳定性100ppm,耐高温晶振,高可靠...
    • RoHS RoHS2

    VCC1A-F3V-24M5760000TR-Microchip品牌-6G基站晶振,Microchip晶振,VCC1A振荡器,进口有源晶振,VCC1A-F3V-24M5760000TR晶振,7050mm晶振,CMOS输出晶振,石英晶体振荡器,四脚贴片晶振,SMD晶体,频率24.576MHz,电压3.3V,工作温度-40~125°C,频率稳定性100ppm,耐高温晶振,高可靠性晶振,低抖动晶振,6G基站晶振,远程信息处理晶振,测试和测量设备晶振,汽车动力系统晶振.

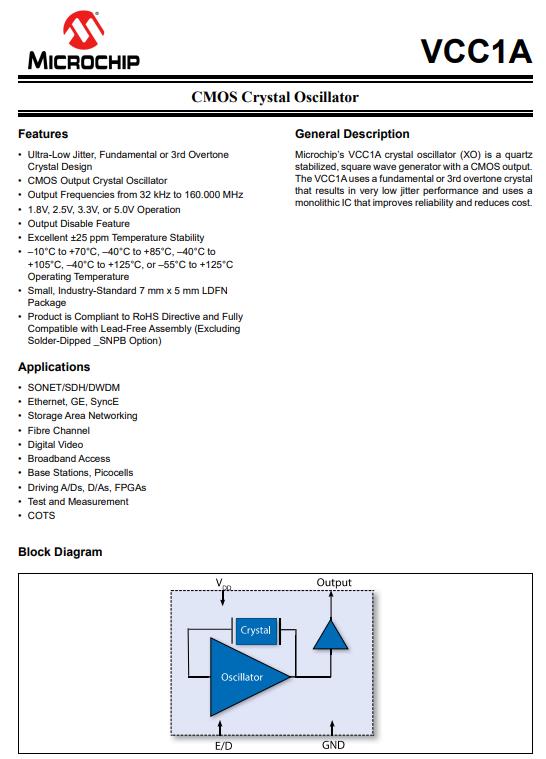

    VCC1A-F3V-24M5760000TR-Microchip品牌-6G基站晶振特点：
    •超低抖动性能，基本或第三OT晶体设计
    •CMOS输出晶体振荡器
    •输出频率从32KHz到160.000MHz
    •+1.8，+2.5，+3.3或+5.0V操作
    •输出禁用功能
    •卓越的±25 ppm温度稳定性
    •10°C至+70°C， -40°C至+85°C， -40°C至+105°C， -40°C至+125°C或-55°C至+125°C工作温度
    •小型工业标准包装，7.0x 5.0mm
    •产品完全符合RoHS指令要求，兼容无铅组件(不包括焊料浸焊，_SNPB选项)

    VCC1A-F3V-24M5760000TR-Microchip品牌-6G基站晶振规格表
    项目 规格说明 条件
    额定频率 24.576MHz 请联系我们以便获取其它可用频率的相关信息
    电源电压 3.3V
    储存温度 -55℃~+150℃ 裸存
    工作温度 -40℃~ +125℃
    频率稳定度 ±100ppm 包括由初始公差、温度和电源电压引起的频率变化
    老化 ±5ppm 1 year @ +25°C
    电流 12mA  Max
    20.001 MHz to 65 MHz
    负载 50pF
    空载电流 60mA
    输出逻辑电平低（Vol） 0.1 × VDD  Max
    输出逻辑电平高（Voh） 0.9 × VDD Min
    输出上升下降时间 5 ns Max
    20.001 MHz to 50 MHz
    占空比 45%~55%
    起始时间 10 ms Max 3.3V
    禁用时间 100ns  Max 3.3V
    周期抖动   2.8ps Typ 100 MHz, RMS
    RMS抖动 115 fs  Max
    12 kHz to 20 MHz

    VCC1A-F3V-24M5760000TR-Microchip品牌-6G基站晶振尺寸图
