    • 首页欧美晶振微晶晶振CC6A-T1D-16.000MHz-20.0pF-50ppm-TB-QI|Micro Crystal AG

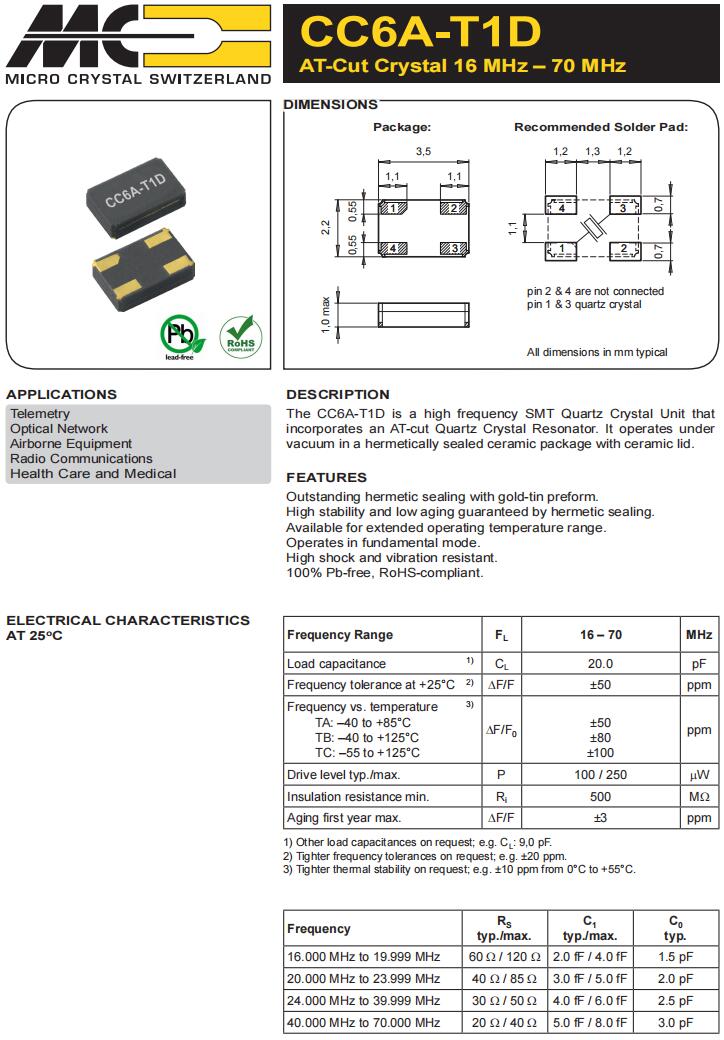

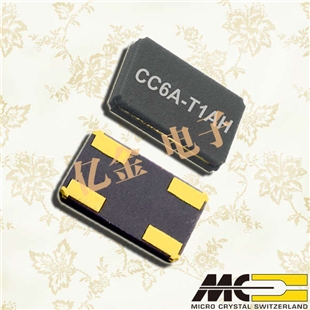

    CC6A-T1D-16.000MHz-20.0pF-50ppm-TB-QI|Micro Crystal AG

    • 频率：16MHz
    • 尺寸：3.5x2.2x1.0mm
    • 应　用： 瑞士微晶晶振,CC6A-T1D进口晶振,石英晶体,CC6A-T1D-16.000MHz-20.0pF-50ppm-TB-QI晶振,3.5×2.2mm晶振,四脚贴片晶振,无源晶振,SMD晶体,频率16MHz,负载20pF,工作温度-40~125°C,频率容差50ppm,耐高温晶振,无铅环保晶振...
    • RoHS RoHS2


    CC6A-T1D-16.000MHz-20.0pF-50ppm-TB-QI|Micro Crystal AG,瑞士微晶晶振,CC6A-T1D进口晶振,石英晶体,CC6A-T1D-16.000MHz-20.0pF-50ppm-TB-QI晶振,3.5×2.2mm晶振,四脚贴片晶振,无源晶振,SMD晶体,频率16MHz,负载20pF,工作温度-40~125°C,频率容差50ppm,耐高温晶振,无铅环保晶振,高稳定性晶振,卫生保健晶振,医疗设备晶振,信息娱乐系统晶振,遥测晶振.
    CC6A-T1D-16.000MHz-20.0pF-50ppm-TB-QI|Micro Crystal AG特点：
    •卓越的密封与金-锡预制
    •高稳定性，低老化，密封保证
    •可扩展工作温度范围
    •在基本模式下运行
    •高抗冲击和抗振动
    •100%不含铅，符合RoHS标准


    CC6A-T1D-16.000MHz-20.0pF-50ppm-TB-QI|Micro Crystal AG规格表
    Standard Frequency
    		 FL 16 MHz
    Load capacitance
    		 CL 20 pF
    Frequency tolerance
    		 ΔF/F ±50 ppm
    Drive level typ/max.
    		 P 100/250
    μW
    Insulation resistance min.
    Ri
    		 500
    MΩ
    Aging first year max.
    ΔF/F
    ±3
    		 ppm
    Storage temperature range
    T_stg
    		 −55~+125
    °C
    TA Operating temperature range
    		 T_use −40~+125 °C
    Shock resistance

    5000 g, 0.3 ms, ½ sine

    Vibration resistance

    20 g / 10–2000 Hz

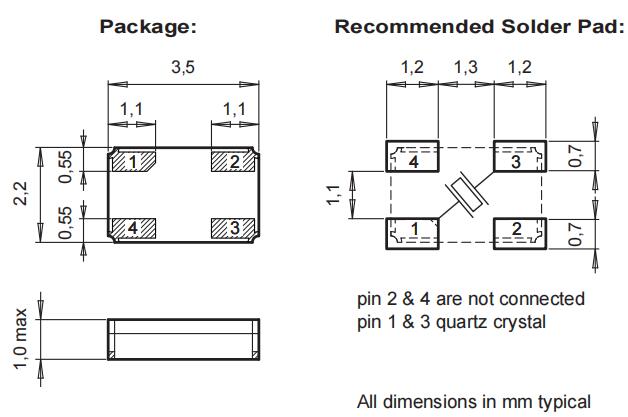

    CC6A-T1D-16.000MHz-20.0pF-50ppm-TB-QI|Micro Crystal AG尺寸图

    制造商零件编号 制造商 描述
    OV-7604-C7-32.768k-20PPM-TB-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200
    OV-7604-C7-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
    MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
    CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    OV-0100-C7-100.000kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C
    OM-0100-C8-100.00kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
    CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
    MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
    CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    OM-7605-C8-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
    OM-7604-C7-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM I2C -40/+85C
    MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
    CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR
    CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR
    CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200
    CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C
    CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
    CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR
    CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
    CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
    CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
    CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
    CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
    CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
    CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
    CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm
    CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm
    CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm
    CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
    CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
    CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
    CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
    CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    202684-MC03 Micro Crystal 晶体 32.768 kHz 4.0 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
    202273-EA00 Micro Crystal 标准时钟振荡器 128MHz 20ppm -55C +85C
    MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    OV-7604-C7-32.768kHz-20PPM-TB-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
    CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
    CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
    CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
    CM7V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
    CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C
    CC7V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C
    CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
    CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
    CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
    CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
    CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
    CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR
    CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C
    CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
    CC7V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
    CM7V-T1A-32.768k-9pF-100PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
    CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768k-6pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200
    MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    OV-7605-C8-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
    CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C
    OM-7604-C7-32.768kHz-20PPM-TB-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
    CC4V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
    OV-7604-C7-32.768k-10PPM-TB-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200
    OV-7604-C7-32.768k-20PPM-TA-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
    CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
    CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C
    CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC Micro Crystal 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C
    CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C
    CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C
    CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C
    CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C
    CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC Micro Crystal 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C
    CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC Micro Crystal 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C
    CC4V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C
    CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
    CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
    OV-7604-C7-32.768kHz-10PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+85C
    OV-0100-C7-100.000kHz-50PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-50 PPM -40/+85C
    CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC Micro Crystal 晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C
    CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C
    CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C
    CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C
    CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C
    200125-PL08 Micro Crystal 晶体 32.768kHz 7pF +/-10 PPM -40C +85C
    OM-7605-C8-20PPM-TA-QA Micro Crystal 标准时钟振荡器 32.768kHz 20ppm 1.6-5.5V
    CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    公司：深圳市亿金电子有限公司
    SHENZHEN YIJIN ELECTRONICS CO;LTD
    电话：0755-27876565
    手机：18924600166
    QQ：857950243
    邮箱：yijindz@163.com
    网站：http://www.yijindz.com
    地址：广东省深圳市宝安区新安107国道旁

    相关产品

    首 页|国产晶振|进口晶振|欧美晶振|有源晶振|亿金路程|人才招聘|常见问题|客户留言|网站地图|在线问答|RSS订阅|联系亿金
    Copyright © 1996-2012 亿金电子 版权所有
    电话：+86-0755-27876565 手机:18924600166　MSN:yijindz@msn.cn
    E-mail：yijindz@163.com QQ:857950243
    网站:www.yijindz.com
    地址：深圳市宝安区新安107国道旁甲岸路
    粤ICP备17105583号-2
    诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴：
    深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
    石英晶振,贴片晶振,32.768K晶振,SC-32S精工晶振,SSP-T7精工晶振,SC-20S精工晶振,DST310SKDS晶振,MC-146爱普生晶振,FC-135爱普生晶振,2X6KDS晶振,差分晶振,2520温补晶振,有源贴片晶振,压控晶体振荡器,315M声表面滤波器,F11-315声表面滤波器,CSTCR-G15村田陶瓷晶振,CSTCR-G15村田陶瓷晶振,110K微孔雾化片,16mm陶瓷雾化片,1.7M雾化片,加湿器雾化片,进口晶振,陶瓷晶振,
    kf
    kf
    close
    kf 亿金微信号
