首页欧美晶振微晶晶振CC8V-T1A-32.768kHz-12.5pF-20ppm-TB-QM,2012mm音叉晶体,医疗设备专用晶振

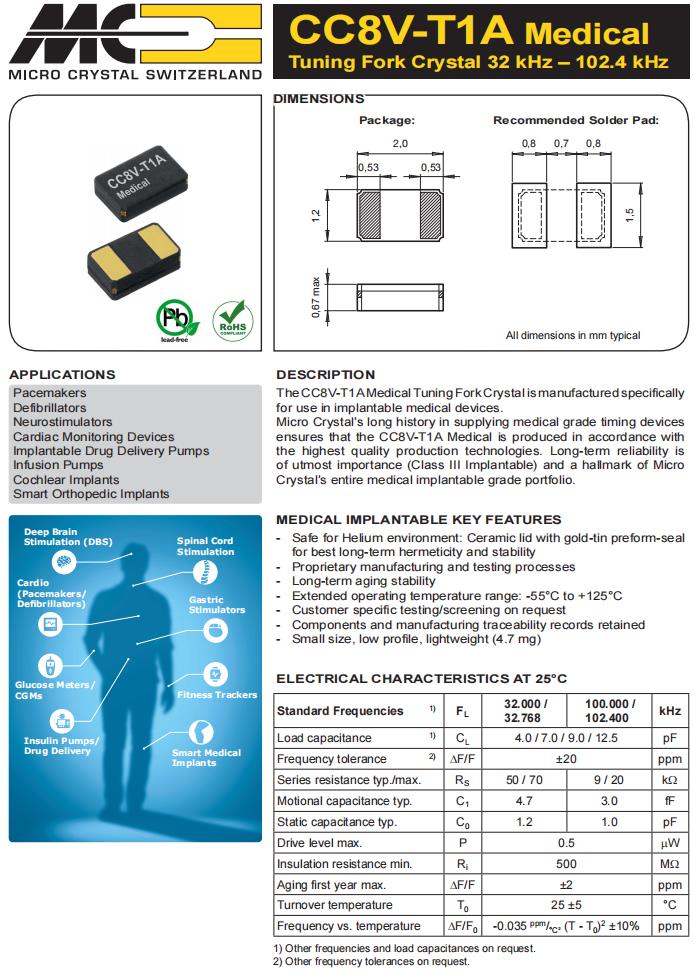

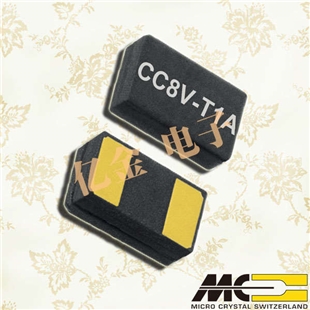

CC8V-T1A-32.768kHz-12.5pF-20ppm-TB-QM,2012mm音叉晶体,医疗设备专用晶振

  • 频率:32.768KHz
  • 尺寸:2.0×1.2mm
  • 应 用: CC8V-T1A医用音叉晶体,编码CC8V-T1A-32.768kHz-12.5pF-20ppm-TB-QM,是专门为植入式医疗设备制造的,Micro Crystal在提供医疗级计时设备方面的悠久历史确保了CC8V-T1A医疗按照最高质量的生产技术生产,频率32.768KHz,尺寸...
  • RoHS RoHS2

CC8V-T1A-32.768kHz-12.5pF-20ppm-TB-QM,2012mm音叉晶体,医疗设备专用晶振,CC8V-T1A医用音叉晶体,无源晶振,编码CC8V-T1A-32.768kHz-12.5pF-20ppm-TB-QM,是专门为植入式医疗设备制造的,Micro Crystal在提供医疗级计时设备方面的悠久历史确保了CC8V-T1A医疗按照最高质量的生产技术生产,频率32.768KHz,尺寸2012mm音叉,负载12.5pF,是医疗设备专用晶振,可用于心脏起搏器,去纤颤器,耳蜗植入设备等产品.
CC8V-T1A-32.768kHz-12.5pF-20ppm-TB-QM,2012mm音叉晶体,医疗设备专用晶振特点:

-氦环境安全:陶瓷盖与金-锡预密封,最佳的长期密封性和稳定性
-专有的制造和测试流程
-长期老化稳定性
-工作温度范围:-55℃~ +125℃
-根据客户要求进行特定测试/筛选
-保留组件和生产可追溯性记录
-体积小,外形低,重量轻(4.7毫克)

CC8V-T1A-32.768kHz-12.5pF-20ppm-TB-QM,2012mm音叉晶体,医疗设备专用晶振规格表
标准频率 FL 32.768 KHz
负载 CL 12.5 pF
频率容差 ΔF/F ±20 ppm
串联电阻最大值 RS 50/70
储存温度 T_stg −55~+125 °C
工作温度 T_use −40~+125 °C
最大驱动电平 P 0.5 μW
最小绝缘电阻
Ri
500
老化第一年 ΔF/F ±3 ppm

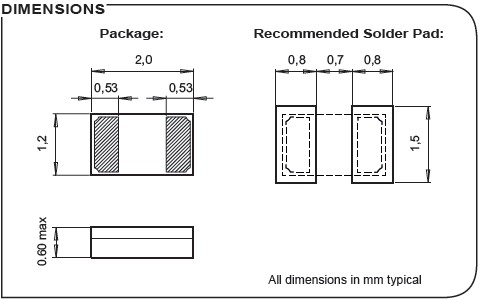

CC8V-T1A-32.768kHz-12.5pF-20ppm-TB-QM,2012mm音叉晶体,医疗设备专用晶振尺寸图


制造商零件编号 制造商 描述 产品类型
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C Crystals
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm Crystals
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals
