MCSO2-FKVT-B-14.7456MHz-E/D-T3|MICRO CRYSTAL

  • 频率:14.7456MHz
  • 尺寸:5.0×3.2mm
  • 应 用: MICRO CRYSTAL,MCS02进口有源晶振,MCSO2-FKVT-B-14.7456MHz-E/D-T3晶振,石英晶体振荡器,5032mm晶振,四脚贴片晶振,SMD晶体,频率14.7456MHz,电压3.3V,工作温度-40~85°C,频率容差50ppm,小体积晶振,高抗冲击晶振,高抗振....
  • RoHS RoHS2


MCSO2-FKVT-B-14.7456MHz-E/D-T3|MICRO CRYSTAL,MICRO CRYSTAL,MCS02进口有源晶振,MCSO2-FKVT-B-14.7456MHz-E/D-T3晶振,石英晶体振荡器,5032mm晶振,四脚贴片晶振,SMD晶体,频率14.7456MHz,电压3.3V,工作温度-40~85°C,频率容差50ppm,小体积晶振,高抗冲击晶振,高抗振动晶振,航空电子设备晶振,遥测应用晶振,有线通讯设备晶振,网络设备晶振.
MCSO2-FKVT-B-14.7456MHz-E/D-T3|MICRO CRYSTAL特点:
•卓越的密封与金-锡预制
•高稳定性,低老化,密封保证
•非常快的启动
•宽温度范围
•在基本模式下运行
•高抗冲击和抗振动
•100%不含铅,符合RoHS标准

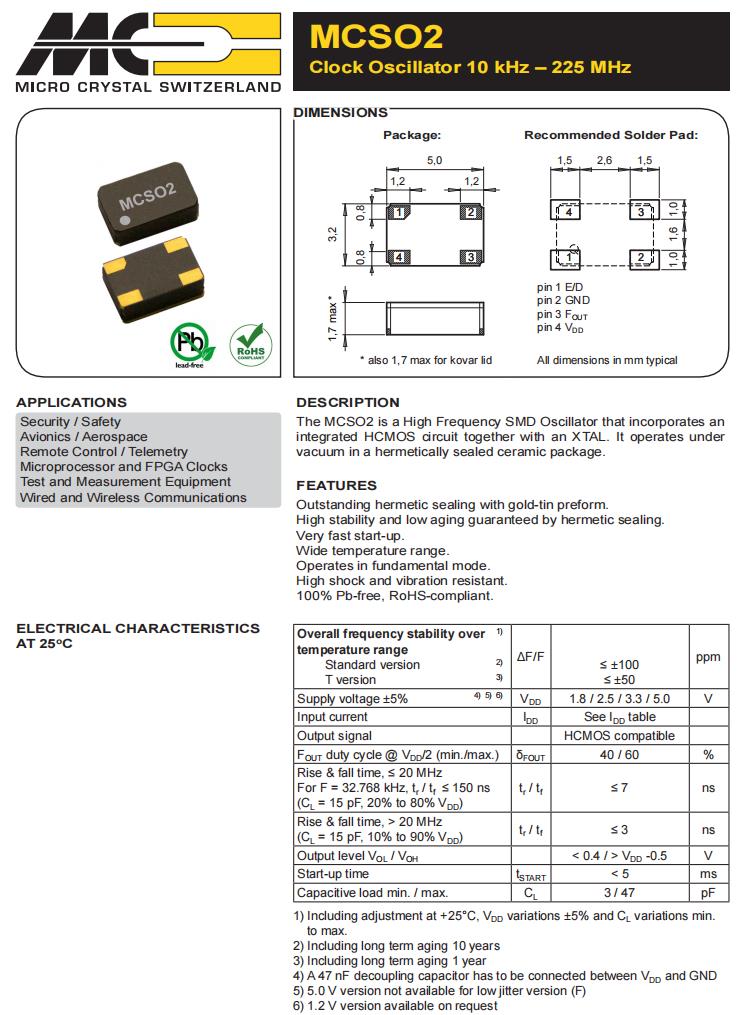

MCSO2-FKVT-B-14.7456MHz-E/D-T3|MICRO CRYSTAL规格表
Standard Frequency FL 14.7456 MHz
Supply voltage ±5% VDD 3.3 V
Frequency tolerance ΔF/F ±50 ppm
Input Current IDD < 5 mA mA
Output signal   HCMOS compatible
FOUT duty cycle @ VDD/2 (min./max.) δFOUT 40 / 60 %
Rise & fall time,≤ 20 MHz
For F = 32.768 kHz, tr / tf ≤ 150 ns(CL = 15 pF, 20% to 80% VDD)
tr / tf ≤ 7 ns
Output level VOL / VOH   < 0.4 / > VDD -0.5 V
Start-up time tSTART < 5 ms
Capacitive load min. / max CL 3 / 47 pF
Storage temperature range T_stg −65~+125 °C
Operating temperature range T_use −40~+85 °C
Shock resistance   5000 g, 0.3 ms, ½ sine
Vibration resistance   50 g / 10–2000 Hz
Lid   Kovar lid (K)
Terminations (Option )   SnAgCu solder dipped pads (T3)

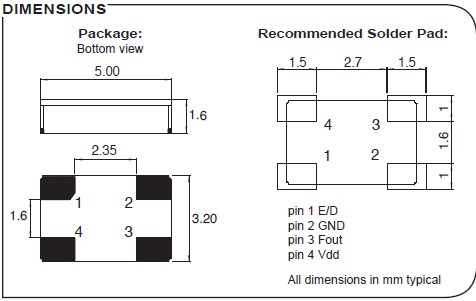

MCSO2-FKVT-B-14.7456MHz-E/D-T3|MICRO CRYSTAL尺寸图
