首页欧美晶振微晶晶振MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振

MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振

  • 频率:32.768KHz
  • 尺寸:3.5×2.2mm
  • 应 用: Micro晶振,MCSO6EU石英水晶振荡子,有源晶振,MCSO6EU-V-E-32.768kHz-E/D-T3晶振,3522mm晶振,四脚贴片晶振,石英晶体振荡器,SMD晶振,频率32.768KHz,电压3.3V,工作温度-55~150°C,频率容差150ppm,耐高温晶振,高抗冲击晶振...
  • RoHS RoHS2


MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振,Micro晶振,MCSO6EU石英水晶振荡子,有源晶振,MCSO6EU-V-E-32.768kHz-E/D-T3晶振,3522mm晶振,四脚贴片晶振,石英晶体振荡器,SMD晶振,频率32.768KHz,电压3.3V,工作温度-55~150°C,频率容差150ppm,耐高温晶振,高抗冲击晶振,高抗振动晶振,航空电子晶振,钻井设备晶振,地热设备晶振,遥测应用晶振.
MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振特点:
•卓越的密封与金-锡预制
•高稳定性,低老化,密封保证

•频率稳定保证1000小时在TMAX
•非常快的启动
•在基本模式下运行
•高抗冲击和抗振动
•100%不含铅,符合RoHS标准

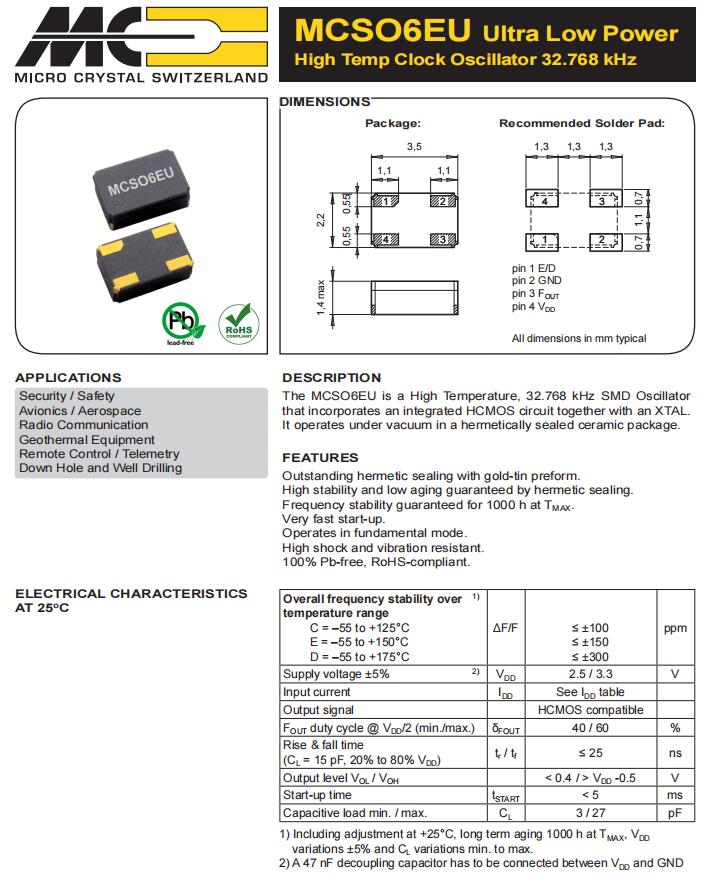

MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振规格表
Standard Frequency FL 32.768 KHz
Supply voltage ±5% VDD 3.3 V
Frequency tolerance ΔF/F ±150 ppm
Input Current IDD
< 20 µA
µA
Output signal   HCMOS compatible
FOUT duty cycle @ VDD/2 (min./max.) δFOUT 40 / 60 %
Rise & fall time,≤ 20 MHz
For F = 32.768 kHz, tr / tf ≤ 150 ns(CL = 15 pF, 20% to 80% VDD)
tr / tf ≤ 25 ns
Output level VOL / VOH   < 0.4 / > VDD -0.5 V
Start-up time tSTART < 5 ms
Capacitive load min. / max CL 3 / 27 pF
Storage temperature range T_stg −65~+125 °C
Operating temperature range T_use −55~+150 °C
Shock resistance   1000 g, 0.3 ms, ½ sine
Vibration resistance   80 g / 10–2000 Hz
Lid
Ceramic lid

Terminations (Option )
SnAgCu solder dipped pads (T3)

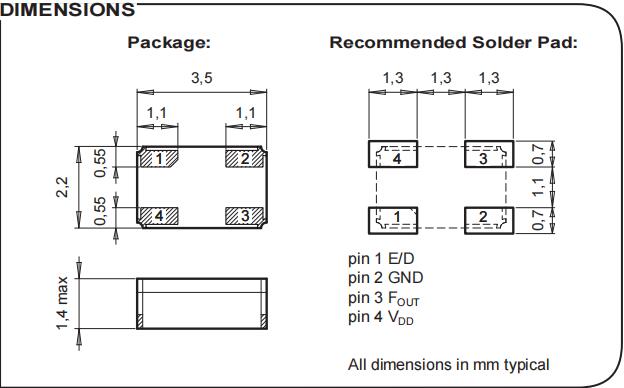

MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振尺寸图
制造商零件编号 制造商 描述
OV-7604-C7-32.768k-20PPM-TB-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200
OV-7604-C7-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
OV-0100-C7-100.000kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C
OM-0100-C8-100.00kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
OM-7605-C8-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
OM-7604-C7-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM I2C -40/+85C
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
202684-MC03 Micro Crystal 晶体 32.768 kHz 4.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
202273-EA00 Micro Crystal 标准时钟振荡器 128MHz 20ppm -55C +85C
MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
OV-7604-C7-32.768kHz-20PPM-TB-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C
CC7V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C
CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR
CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CC7V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768k-9pF-100PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768k-6pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
OV-7605-C8-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C
OM-7604-C7-32.768kHz-20PPM-TB-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
CC4V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
OV-7604-C7-32.768k-10PPM-TB-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200
OV-7604-C7-32.768k-20PPM-TA-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C
CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC Micro Crystal 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C
CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C
CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C
CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C
CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC Micro Crystal 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C
CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC Micro Crystal 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C
CC4V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
OV-7604-C7-32.768kHz-10PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+85C
OV-0100-C7-100.000kHz-50PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-50 PPM -40/+85C
CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC Micro Crystal 晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C
CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C
200125-PL08 Micro Crystal 晶体 32.768kHz 7pF +/-10 PPM -40C +85C
OM-7605-C8-20PPM-TA-QA Micro Crystal 标准时钟振荡器 32.768kHz 20ppm 1.6-5.5V
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
公司:深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话:0755-27876565
手机:18924600166
QQ:857950243
邮箱:yijindz@163.com
网站:http://www.yijindz.com
地址:广东省深圳市宝安区新安107国道旁

相关产品

诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴:
深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
kf
kf
close
kf 亿金微信号
