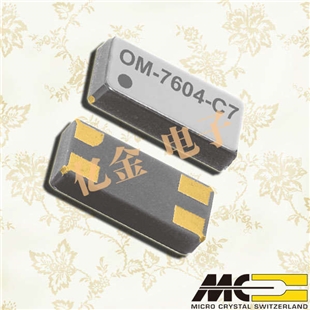

OM-7604-C7-20ppm-TA-QC|6G相关设备晶振|3215mm晶振

  • 频率:32.768KHz
  • 尺寸:3.2×1.5mm
  • 应 用: Micro晶振,OM-7604-C7有源晶振,OM-7604-C7-20ppm-TA-QC晶振,低频SMT振荡器,3215mm晶振,小体积晶振,四脚SMD晶振,频率32.768KHz,电压3.3V,工作温度-40~85°C,高抗冲击晶振,高抗振动晶振,6G相关设备晶振,物联网晶振,可穿...
  • RoHS RoHS2

OM-7604-C7-20ppm-TA-QC|6G相关设备晶振|3215mm晶振,Micro晶振,OM-7604-C7有源晶振,OM-7604-C7-20ppm-TA-QC晶振,低频SMT振荡器,3215mm晶振,小体积晶振,四脚SMD晶振,频率32.768KHz,电压3.3V,工作温度-40~85°C,高抗冲击晶振,高抗振动晶振,6G相关设备晶振,物联网晶振,可穿戴设备晶振,汽车音影系统晶振.
OM-7604-C7-20ppm-TA-QC|6G相关设备晶振|3215mm晶振 特点
-宽电源电压范围
-非常低的功耗
-同步CLKOUT使能/禁用
-体积小,低姿态,重量轻(10.6毫克)
-高抗冲击和振动
-100%无铅,符合RoHS标准
-提供符合AEC-Q200的汽车认证

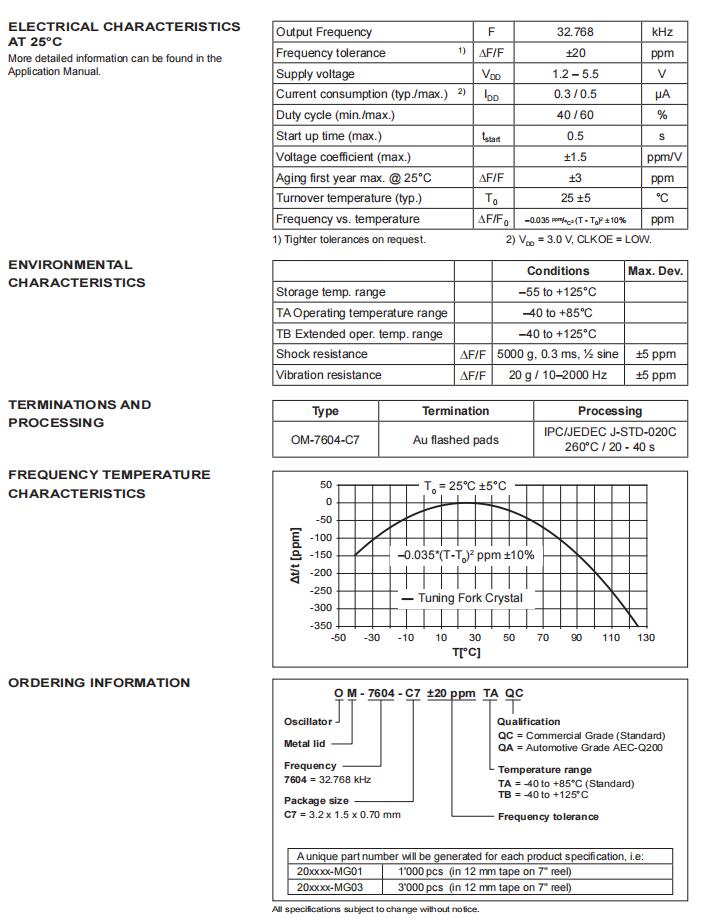

OM-7604-C7-20ppm-TA-QC|6G相关设备晶振|3215mm晶振规格表
标准频率 FL 32.768 KHz
频率容差 ΔF/F ±20 ppm
电源电压 VDD 3.3 V
电流消耗(典型/最大值) IDD 0.3 / 0.5 µA
占空比(最小/最大)   40 / 60 %
储存温度 T_stg −55~+125 °C
工作温度 T_use −40~+85 °C
启动时间(最大) tstart 0.5 S
周转温度(典型值) T0 25 ±5 °C
老化第一年 ΔF/F ±3 ppm
频率温度稳定性
ΔF/F0 –0.035 ppm/ °C² (T - T0)2 ±10% ppm

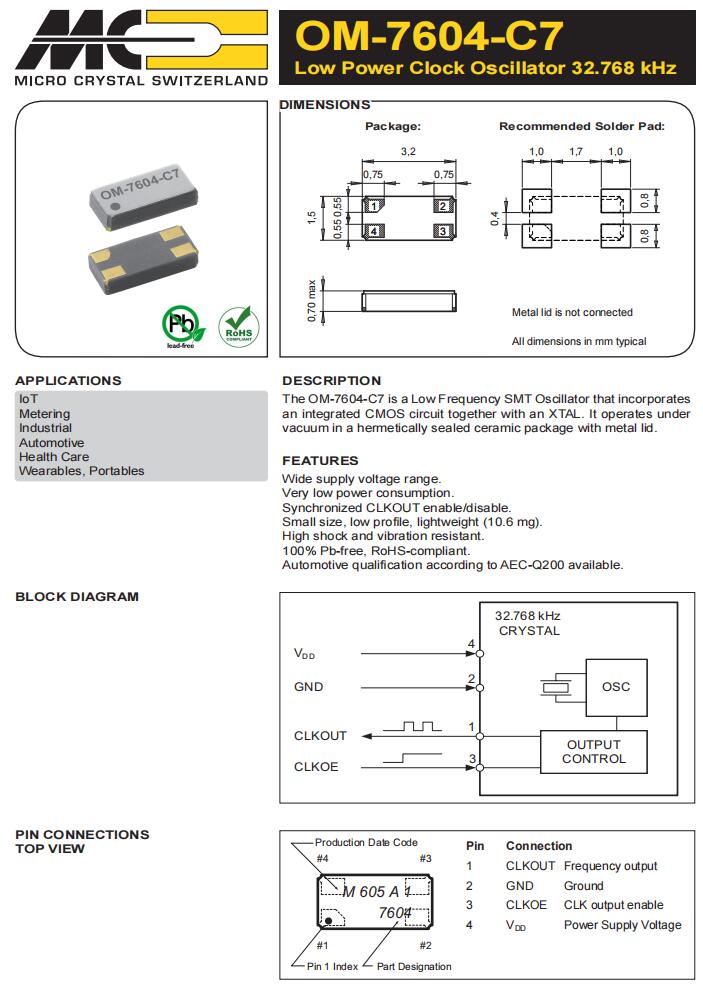

OM-7604-C7-20ppm-TA-QC|6G相关设备晶振|3215mm晶振尺寸图



制造商零件编号 制造商 描述 产品类型
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C Crystals
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm Crystals
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C Crystals
MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C Crystals
CC7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals
CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR Crystals
CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C Crystals
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals
CC7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals
CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768k-6pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 Crystals
MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC Micro 晶振 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C Crystals
CC4V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals
CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro 晶振 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C Crystals
CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC Micro 晶振 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C Crystals
CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC Micro 晶振 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC Micro 晶振 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC Micro 晶振 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C Crystals
CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C Crystals
CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC Micro 晶振 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC Micro 晶振 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC Micro 晶振 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C Crystals
CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC Micro 晶振 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C Crystals
CC4V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals
CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C Crystals
CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC Micro 晶振 晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C Crystals
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C Crystals
CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C Crystals
CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C Crystals
CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C Crystals
CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro 晶振 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C Crystals
CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC Micro 晶振 晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C Crystals
CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC Micro 晶振 晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C Crystals
