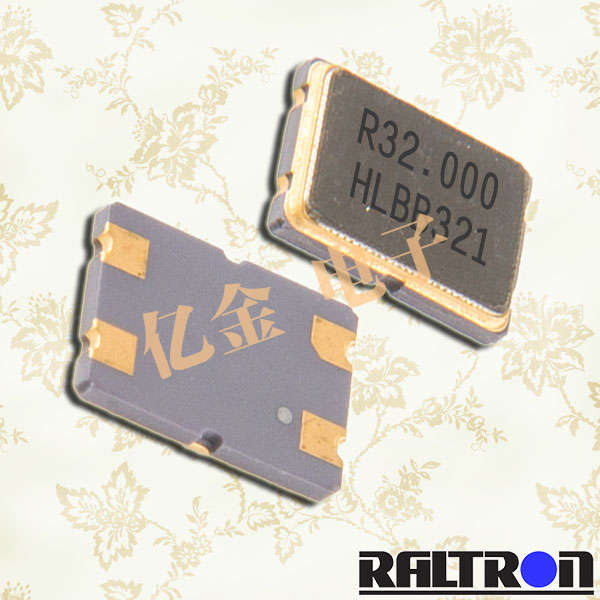

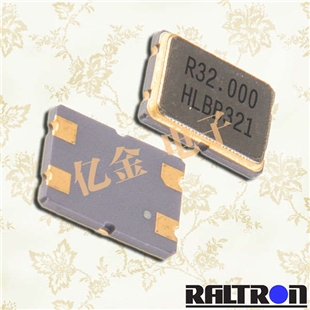

Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太网晶振

频率：19.2MHz
尺寸：7.0×5.0mm
应　用： 美国拉隆晶振,进口无源晶振,H13SMD晶振,H13-19.200-16-5050-EXT-TR晶振,7050mm晶振,频率19.2MHz,负载16pF,频率稳定性50ppm,工作温度-40~85°C,高稳定性晶振,无铅环保晶振,6G以太网晶振,蓝牙模块晶振,智能手机晶振,平板...

Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太网晶振,美国拉隆晶振,进口无源晶振,H13SMD晶振,H13-19.200-16-5050-EXT-TR晶振,7050mm晶振,频率19.2MHz,负载16pF,频率稳定性50ppm,工作温度-40~85°C,高稳定性晶振,无铅环保晶振,6G以太网晶振,蓝牙模块晶振,智能手机晶振,平板电脑晶振.
Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太网晶振特点：
•低调

•严格的公差和稳定性到±10ppm

•宽频率范围

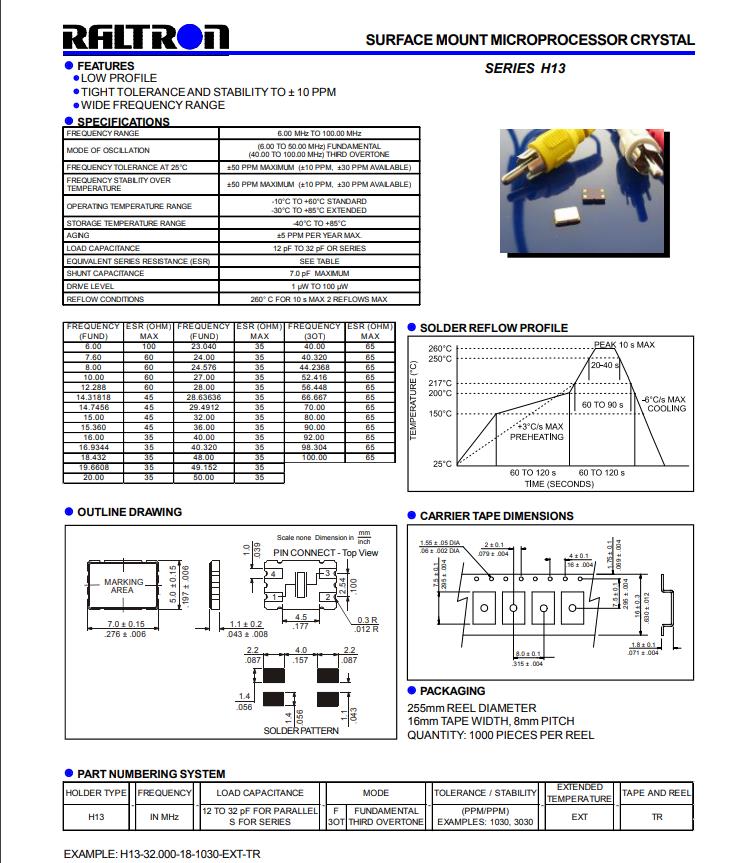

Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太网晶振规格表

参数	数值
标准频率	19.2MHz
频率容差	50ppm
频率稳定性	30ppm
工作温度	−40~+85°C
储存温度	−40~+85°C
老化	±5ppm
负载	16pF
并联电容	7pF Max
激励功率	1 µW TO 100 µW
等效串联电阻	35 OHMS MAX
等效串联电阻	35 OHMS MAX
回流焊条件	260° C FOR 10 s MAX 2 REFLOWS MAX

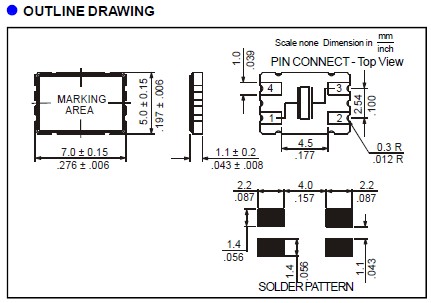

Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太网晶振尺寸图

Raltron原厂编码	型号	频率	尺寸	频率偏差	频率稳定度	负载	工作温度
H13-10.000-16-5050-EXT-TR	H13	10.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-13.000-16-5050-EXT-TR	H13	13.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-16.000-16-5050-EXT-TR	H13	16.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-19.200-16-5050-EXT-TR	H13	19.200MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-20.000-16-5050-EXT-TR	H13	20.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-21.000-16-5050-EXT-TR	H13	21.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-22.000-16-5050-EXT-TR	H13	22.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-23.000-16-5050-EXT-TR	H13	23.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-24.000-16-5050-EXT-TR	H13	24.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-25.000-16-5050-EXT-TR	H13	25.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-26.000-16-5050-EXT-TR	H13	26.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-27.000-16-5050-EXT-TR	H13	27.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-28.000-16-5050-EXT-TR	H13	28.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-29.000-16-5050-EXT-TR	H13	29.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-30.000-16-5050-EXT-TR	H13	30.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-31.000-16-5050-EXT-TR	H13	31.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-32.000-16-5050-EXT-TR	H13	32.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-33.000-16-5050-EXT-TR	H13	33.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-34.000-16-5050-EXT-TR	H13	34.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-35.000-16-5050-EXT-TR	H13	35.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-36.000-16-5050-EXT-TR	H13	36.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-37.000-16-5050-EXT-TR	H13	37.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-38.000-16-5050-EXT-TR	H13	38.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-39.000-16-5050-EXT-TR	H13	39.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-40.000-16-5050-EXT-TR	H13	40.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-41.000-16-5050-EXT-TR	H13	41.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
