    Skyworks晶振,571BAA000522DG,6G数据通信晶振

    • 频率：545MHz
    • 尺寸：7.0×5.0mm
    • 应　用： Skyworks晶振,Si571有源晶振,571BAA000522DG晶振,高频率稳定性晶振,高可靠性晶振,LVDS晶振,差分晶振,7050mm晶振,石英晶体振荡器,进口晶振,贴片晶振,6G数据通信晶振,调制解调器晶振,路由器晶振,网络设备晶振.
    • RoHS RoHS2

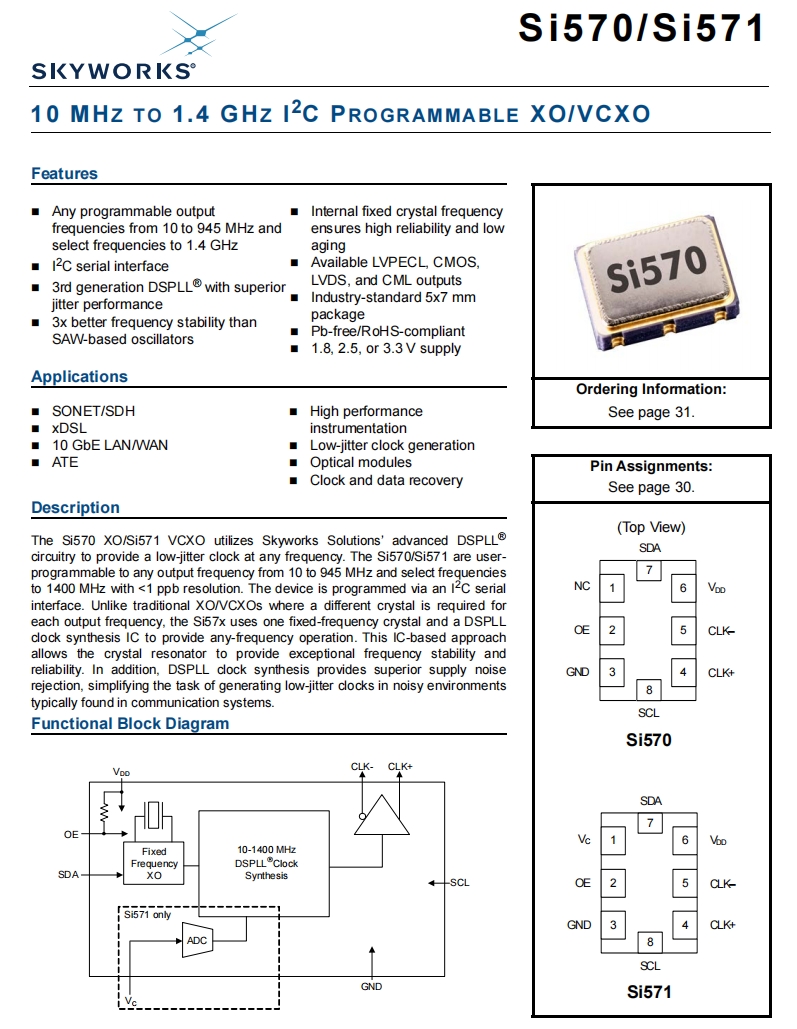

    Skyworks晶振,    571BAA000522DG,6G数据通信晶振,Skyworks晶振,Si571有源晶振采用Skyworks Solutions先进的DSPLL®电路,在任何频率下提供低抖动时钟,Si571是用户可编程到从10到945 MHz的任何输出频率,并选择频率到1400 MHz,分辨率<1 ppb,该设备通过I2C串行接口编程,不同于传统的VCXO,每个输出频率需要不同的晶体,Si571使用一个固定频率晶体和一个DSPLL时钟合成IC来提供任何频率的工作,这种基于集成电路的方法允许晶体谐振器提供卓越的频率稳定性和可靠性,LVDS晶振,差分晶振,7050mm晶振,6G数据通信晶振,调制解调器晶振,路由器晶振,网络设备晶振.
    Skyworks晶振,571BAA000522DG,6G数据通信晶振特点：
    •可与任意速率输出频率从10MHz到945MHz和选择频率到1.4 GHz

    •I2C串行接口

    •第三代DSPLL®具有优越的抖动性能

    •频率稳定性优于SAW-based振荡器

    •内部固定晶频，可靠性高，老化低

    •具备CMOS, LVPECL，LVDS和CML输出

    •3.3, 2.5和1.8 V电源选项

    •工业标准的5 × 7mm封装和引脚

    •无铅，符合RoHS标准


    Skyworks晶振,571BAA000522DG,6G数据通信晶振规格表
    项目 符号 规格说明 条件
    额定频率 f_nom 545MHz 请联系我们以便获取其它可用频率的相关信息
    电源电压 Vcc 3.3V
    储存温度 T_stg -55℃~+125℃ 裸存
    工作温度 T_use -40℃~ +85℃
    频率稳定性 f_tol ±100 ppm +25℃,超出标准的规格说明请联系我们
    电源电流 IDD 108mA Max
    LVDS
    对称性（占空比） SYM 45%~55% 在输出交叉点
    输出电压 VOD 0.9VPP Max
    LVDS
    VO 1.275V Max
    输入电压 VIH 0.75XVDD Min

    VIL 0.5V Max
    上升下降时间 tr/tf 350ps Max
    LVDS
    起始时间 t str 10ms Max
    相位抖动 tpj 0.62ps Max
    Differential Formats

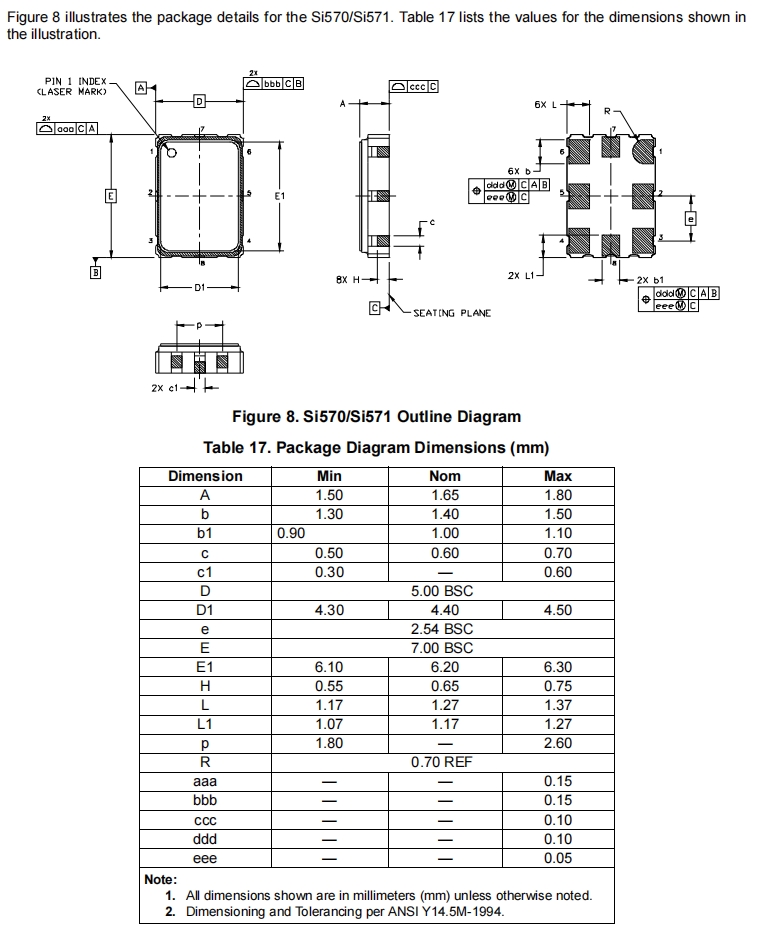

    Skyworks晶振,571BAA000522DG,6G数据通信晶振尺寸图


    原厂编码 品牌 型号 频率 输出 电压 频率稳定性
    571AEA000122DG Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000122DGR Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571BMC000804DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMC000804DGR Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BAA000522DG Skyworks Solutions Inc. Si571 545 MHz LVDS 2.97V ~ 3.63V ±100ppm
    571BBA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±100ppm
    571BBA000126DG Skyworks Solutions Inc. Si571 200 MHz LVDS 2.97V ~ 3.63V ±100ppm
    571BFA000166DG Skyworks Solutions Inc. Si571 622.08 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571ECA000107DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.25V ~ 2.75V ±50ppm
    571FCA000122DG Skyworks Solutions Inc. Si571 1 GHz LVDS 2.25V ~ 2.75V ±50ppm
    571FCA000313DG Skyworks Solutions Inc. Si571 300 MHz LVDS 2.25V ~ 2.75V ±50ppm
    571FCA001742DG Skyworks Solutions Inc. Si571 300 MHz LVDS 2.25V ~ 2.75V ±50ppm
    571FDA000113DG Skyworks Solutions Inc. Si571 311.04 MHz LVDS 2.25V ~ 2.75V ±50ppm
    571MDA001661DG Skyworks Solutions Inc. Si571 496.685652 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571NCA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571SCA000121DG Skyworks Solutions Inc. Si571 100 MHz LVDS 2.25V ~ 2.75V ±50ppm
    571ACA000107DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ACA000112DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ACA000122DG Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ACA000141DG Skyworks Solutions Inc. Si571 56.32 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ACA000148DG Skyworks Solutions Inc. Si571 24.576 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ACA000206DG Skyworks Solutions Inc. Si571 321.4 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ACA000209DG Skyworks Solutions Inc. Si571 14.1 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA000107DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA000112DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA000382DG Skyworks Solutions Inc. Si571 1.375 GHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA001549DG Skyworks Solutions Inc. Si571 993.409691 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA001841DG Skyworks Solutions Inc. Si571 802.5 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571AFA000122DG Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±50ppm
    571AFA000133DG Skyworks Solutions Inc. Si571 500 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571BCA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BCA000112DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BCA000121DG Skyworks Solutions Inc. Si571 100 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BCA000395DG Skyworks Solutions Inc. Si571 904.64 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BCA000675DG Skyworks Solutions Inc. Si571 51.84 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA001064DG Skyworks Solutions Inc. Si571 589.824 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA001122DG Skyworks Solutions Inc. Si571 1.4 GHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA001628DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA001721DG Skyworks Solutions Inc. Si571 830 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571ADA000164DG Skyworks Solutions Inc. Si571 400 MHz LVPECL 3.3V ±50ppm
    571ADA000233DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 3.3V ±50ppm
    571ADA001971DG Skyworks Solutions Inc. Si571 873.51542 MHz LVPECL 3.3V ±50ppm
    571ECA000112DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.5V ±50ppm
    571ECA000399DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.5V ±50ppm
    571ECA002033DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.5V ±50ppm
    571FFA000161DG Skyworks Solutions Inc. Si571 491.52 MHz LVDS 2.5V ±50ppm
    571ADA000106DG Skyworks Solutions Inc. Si571 155.52 MHz LVPECL 3.3V ±50ppm
    571ACA000106DG Skyworks Solutions Inc. Si571 155.52 MHz LVPECL 3.3V ±50ppm
    571ADA002143DG Skyworks Solutions Inc. Si571 444 MHz LVPECL 3.3V ±50ppm
    571BDA000115DG Skyworks Solutions Inc. Si571 125 MHz LVDS 3.3V ±50ppm
    571BDA000112DG Skyworks Solutions Inc. Si571 10 MHz LVDS 3.3V ±50ppm
    571ADA000991DG Skyworks Solutions Inc. Si571 135 MHz LVPECL 3.3V ±50ppm
    571ADA000115DG Skyworks Solutions Inc. Si571 125 MHz LVPECL 3.3V ±50ppm
    571BDA000436DG Skyworks Solutions Inc. Si571 10 MHz LVDS 3.3V ±50ppm
    571BGA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BGA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BGA000121DGR Skyworks Solutions Inc. Si571 100 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BGA000122DGR Skyworks Solutions Inc. Si571 1 GHz LVDS 2.97V ~ 3.63V ±20ppm
    571BGA001666DGR Skyworks Solutions Inc. Si571 125 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BHA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BHA000170DGR Skyworks Solutions Inc. Si571 915 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BHA000278DGR Skyworks Solutions Inc. Si571 146.52 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA000118DGR Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA000372DGR Skyworks Solutions Inc. Si571 800 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA001082DGR Skyworks Solutions Inc. Si571 320 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA001118DGR Skyworks Solutions Inc. Si571 784.247202 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA001898DGR Skyworks Solutions Inc. Si571 102.4 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000118DGR Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000121DGR Skyworks Solutions Inc. Si571 100 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000122DGR Skyworks Solutions Inc. Si571 1 GHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000164DGR Skyworks Solutions Inc. Si571 400 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000179DGR Skyworks Solutions Inc. Si571 312.5 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000788DGR Skyworks Solutions Inc. Si571 438 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000804DGR Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571EJA000763DGR Skyworks Solutions Inc. Si571 1.09 GHz LVPECL 2.25V ~ 2.75V ±20ppm
    571FGA000126DGR Skyworks Solutions Inc. Si571 200 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FHA000103DGR Skyworks Solutions Inc. Si571 155.52 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000466DGR Skyworks Solutions Inc. Si571 161.733417 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000741DGR Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000742DGR Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000743DGR Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000744DGR Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000745DGR Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FMA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571MHA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571MJA000121DGR Skyworks Solutions Inc. Si571 100 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571MJA000542DGR Skyworks Solutions Inc. Si571 698.812335 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571MMA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571MMA000122DGR Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571NEA001677DGR Skyworks Solutions Inc. Si571 873.515 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NHA000399DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NJA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NJA000143DGR Skyworks Solutions Inc. Si571 117 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NMA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NMA000409DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571SHA000115DGR Skyworks Solutions Inc. Si571 125 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571SHA001843DGR Skyworks Solutions Inc. Si571 1.29948467 GHz LVDS 2.25V ~ 2.75V ±20ppm
    571AEA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000121DGR Skyworks Solutions Inc. Si571 100 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000133DGR Skyworks Solutions Inc. Si571 500 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000197DGR Skyworks Solutions Inc. Si571 614.4 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000227DGR Skyworks Solutions Inc. Si571 980 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000444DGR Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000462DGR Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000467DGR Skyworks Solutions Inc. Si571 990 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000498DGR Skyworks Solutions Inc. Si571 825 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000928DGR Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001455DGR Skyworks Solutions Inc. Si571 100 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001677DGR Skyworks Solutions Inc. Si571 873.515 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001678DGR Skyworks Solutions Inc. Si571 993.41 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001679DGR Skyworks Solutions Inc. Si571 873.515 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001680DGR Skyworks Solutions Inc. Si571 993.41 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001796DGR Skyworks Solutions Inc. Si571 873.51542 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000192DGR Skyworks Solutions Inc. Si571 647.239 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000239DGR Skyworks Solutions Inc. Si571 233.639 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000240DGR Skyworks Solutions Inc. Si571 877.969 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000420DGR Skyworks Solutions Inc. Si571 644.53125 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000106DGR Skyworks Solutions Inc. Si571 155.52 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000122DGR Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000372DGR Skyworks Solutions Inc. Si571 800 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000550DGR Skyworks Solutions Inc. Si571 146.54 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000618DGR Skyworks Solutions Inc. Si571 437.5 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA001612DGR Skyworks Solutions Inc. Si571 698.812334 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000121DGR Skyworks Solutions Inc. Si571 100 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000137DGR Skyworks Solutions Inc. Si571 1.024 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000192DGR Skyworks Solutions Inc. Si571 647.239 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000374DGR Skyworks Solutions Inc. Si571 200 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000400DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000409DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000512DGR Skyworks Solutions Inc. Si571 706.25 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001118DGR Skyworks Solutions Inc. Si571 784.247202 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001212DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001741DGR Skyworks Solutions Inc. Si571 70.656 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001748DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001757DGR Skyworks Solutions Inc. Si571 1.024 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001788DGR Skyworks Solutions Inc. Si571 993.40969 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001789DGR Skyworks Solutions Inc. Si571 1.0242396 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001863DGR Skyworks Solutions Inc. Si571 978 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001959DGR Skyworks Solutions Inc. Si571 873 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000105DGR Skyworks Solutions Inc. Si571 622.08 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000165DGR Skyworks Solutions Inc. Si571 622.08 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000166DGR Skyworks Solutions Inc. Si571 622.08 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000444DGR Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000501DGR Skyworks Solutions Inc. Si571 1.333 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000788DGR Skyworks Solutions Inc. Si571 438 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571BEA000107DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BEA000121DGR Skyworks Solutions Inc. Si571 100 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BEA000122DGR Skyworks Solutions Inc. Si571 1 GHz LVDS 2.97V ~ 3.63V ±20ppm
    571BEA000126DGR Skyworks Solutions Inc. Si571 200 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BEA001828DGR Skyworks Solutions Inc. Si571 1.1 GHz LVDS 2.97V ~ 3.63V ±20ppm
    571AJA001973DGR Skyworks Solutions Inc. Si571 993 MHz LVPECL 3.3V ±20ppm
    571AMA001971DGR Skyworks Solutions Inc. Si571 873.51542 MHz LVPECL 3.3V ±20ppm
    571BGA000476DGR Skyworks Solutions Inc. Si571 322.265625 MHz LVDS 3.3V ±20ppm
    571AMA000121DGR Skyworks Solutions Inc. Si571 100 MHz LVPECL 3.3V ±20ppm
    571BJA000215DGR Skyworks Solutions Inc. Si571 27 MHz LVDS 3.3V ±20ppm
    571AJA000337DGR Skyworks Solutions Inc. Si571 155.52 MHz LVPECL 3.3V ±20ppm
    571NEA001679DGR Skyworks Solutions Inc. Si571 873.515 MHz LVDS 3.3V ±20ppm
    571AEA002238DGR Skyworks Solutions Inc. Si571 63 MHz LVPECL 3.3V ±20ppm
    571NJA000181DGR Skyworks Solutions Inc. Si571 148.5 MHz LVDS 3.3V ±20ppm
    571BEA002345DGR Skyworks Solutions Inc. Si571 873.49794 MHz LVDS 3.3V ±20ppm
    571AJA002230DGR Skyworks Solutions Inc. Si571 155.48 MHz LVPECL 3.3V ±20ppm
    571BGA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BGA000112DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BGA000121DG Skyworks Solutions Inc. Si571 100 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BGA000122DG Skyworks Solutions Inc. Si571 1 GHz LVDS 2.97V ~ 3.63V ±20ppm
    571BGA001666DG Skyworks Solutions Inc. Si571 125 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BHA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BHA000170DG Skyworks Solutions Inc. Si571 915 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BHA000278DG Skyworks Solutions Inc. Si571 146.52 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA000112DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA000118DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA000372DG Skyworks Solutions Inc. Si571 800 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA001082DG Skyworks Solutions Inc. Si571 320 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA001118DG Skyworks Solutions Inc. Si571 784.247202 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BJA001898DG Skyworks Solutions Inc. Si571 102.4 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000112DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000118DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000121DG Skyworks Solutions Inc. Si571 100 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000122DG Skyworks Solutions Inc. Si571 1 GHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000164DG Skyworks Solutions Inc. Si571 400 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000179DG Skyworks Solutions Inc. Si571 312.5 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000788DG Skyworks Solutions Inc. Si571 438 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BMA000804DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571EJA000763DG Skyworks Solutions Inc. Si571 1.09 GHz LVPECL 2.25V ~ 2.75V ±20ppm
    571FGA000126DG Skyworks Solutions Inc. Si571 200 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FHA000103DG Skyworks Solutions Inc. Si571 155.52 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000466DG Skyworks Solutions Inc. Si571 161.733417 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000741DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000742DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000743DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000744DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FJA000745DG Skyworks Solutions Inc. Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571FMA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571MHA000107DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571MJA000121DG Skyworks Solutions Inc. Si571 100 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571MJA000542DG Skyworks Solutions Inc. Si571 698.812335 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571MMA000107DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571MMA000122DG Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571NEA001677DG Skyworks Solutions Inc. Si571 873.515 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NHA000399DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NJA000112DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NJA000143DG Skyworks Solutions Inc. Si571 117 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NMA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571NMA000409DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571SHA000115DG Skyworks Solutions Inc. Si571 125 MHz LVDS 2.25V ~ 2.75V ±20ppm
    571SHA001843DG Skyworks Solutions Inc. Si571 1.29948467 GHz LVDS 2.25V ~ 2.75V ±20ppm
    571AEA000107DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000112DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000121DG Skyworks Solutions Inc. Si571 100 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000133DG Skyworks Solutions Inc. Si571 500 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000197DG Skyworks Solutions Inc. Si571 614.4 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000227DG Skyworks Solutions Inc. Si571 980 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000444DG Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000462DG Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000467DG Skyworks Solutions Inc. Si571 990 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000498DG Skyworks Solutions Inc. Si571 825 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA000928DG Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001455DG Skyworks Solutions Inc. Si571 100 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001677DG Skyworks Solutions Inc. Si571 873.515 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001678DG Skyworks Solutions Inc. Si571 993.41 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001679DG Skyworks Solutions Inc. Si571 873.515 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001680DG Skyworks Solutions Inc. Si571 993.41 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AEA001796DG Skyworks Solutions Inc. Si571 873.51542 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000107DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000112DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000192DG Skyworks Solutions Inc. Si571 647.239 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000239DG Skyworks Solutions Inc. Si571 233.639 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000240DG Skyworks Solutions Inc. Si571 877.969 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AGA000420DG Skyworks Solutions Inc. Si571 644.53125 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000106DG Skyworks Solutions Inc. Si571 155.52 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000107DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000112DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000122DG Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000372DG Skyworks Solutions Inc. Si571 800 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000550DG Skyworks Solutions Inc. Si571 146.54 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA000618DG Skyworks Solutions Inc. Si571 437.5 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AHA001612DG Skyworks Solutions Inc. Si571 698.812334 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000112DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000121DG Skyworks Solutions Inc. Si571 100 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000137DG Skyworks Solutions Inc. Si571 1.024 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000192DG Skyworks Solutions Inc. Si571 647.239 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000374DG Skyworks Solutions Inc. Si571 200 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000400DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000409DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA000512DG Skyworks Solutions Inc. Si571 706.25 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001118DG Skyworks Solutions Inc. Si571 784.247202 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001212DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001741DG Skyworks Solutions Inc. Si571 70.656 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001748DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001757DG Skyworks Solutions Inc. Si571 1.024 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001788DG Skyworks Solutions Inc. Si571 993.40969 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001789DG Skyworks Solutions Inc. Si571 1.0242396 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001863DG Skyworks Solutions Inc. Si571 978 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AJA001959DG Skyworks Solutions Inc. Si571 873 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000105DG Skyworks Solutions Inc. Si571 622.08 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000107DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000112DG Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000165DG Skyworks Solutions Inc. Si571 622.08 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000166DG Skyworks Solutions Inc. Si571 622.08 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000444DG Skyworks Solutions Inc. Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000501DG Skyworks Solutions Inc. Si571 1.333 GHz LVPECL 2.97V ~ 3.63V ±20ppm
    571AMA000788DG Skyworks Solutions Inc. Si571 438 MHz LVPECL 2.97V ~ 3.63V ±20ppm
    571BEA000107DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BEA000121DG Skyworks Solutions Inc. Si571 100 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BEA000122DG Skyworks Solutions Inc. Si571 1 GHz LVDS 2.97V ~ 3.63V ±20ppm
    571BEA000126DG Skyworks Solutions Inc. Si571 200 MHz LVDS 2.97V ~ 3.63V ±20ppm
    571BEA001828DG Skyworks Solutions Inc. Si571 1.1 GHz LVDS 2.97V ~ 3.63V ±20ppm
    571AJA001973DG Skyworks Solutions Inc. Si571 993 MHz LVPECL 3.3V ±20ppm
    571AMA001971DG Skyworks Solutions Inc. Si571 873.51542 MHz LVPECL 3.3V ±20ppm
    571BGA000476DG Skyworks Solutions Inc. Si571 322.265625 MHz LVDS 3.3V ±20ppm
    571AJA000337DG Skyworks Solutions Inc. Si571 155.52 MHz LVPECL 3.3V ±20ppm
    571BEA002345DG Skyworks Solutions Inc. Si571 873.49794 MHz LVDS 3.3V ±20ppm
    571BJA000215DG Skyworks Solutions Inc. Si571 27 MHz LVDS 3.3V ±20ppm
    571NJA000181DG Skyworks Solutions Inc. Si571 148.5 MHz LVDS 3.3V ±20ppm
    571NEA001679DG Skyworks Solutions Inc. Si571 873.515 MHz LVDS 3.3V ±20ppm
    571AMA000121DG Skyworks Solutions Inc. Si571 100 MHz LVPECL 3.3V ±20ppm
    571AEA002238DG Skyworks Solutions Inc. Si571 63 MHz LVPECL 3.3V ±20ppm
    571AJA002230DG Skyworks Solutions Inc. Si571 155.48 MHz LVPECL 3.3V ±20ppm
    571EJB000111DG Skyworks Solutions Inc. Si571 25 MHz LVPECL 2.25V ~ 2.75V ±20ppm
    571BFA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571MDA000265DGR Skyworks Solutions Inc. Si571 1.3 GHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA000133DGR Skyworks Solutions Inc. Si571 500 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA000803DGR Skyworks Solutions Inc. Si571 148.351648 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA001211DGR Skyworks Solutions Inc. Si571 700 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA001243DGR Skyworks Solutions Inc. Si571 900 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA001548DGR Skyworks Solutions Inc. Si571 993.409692 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571AFA000112DGR Skyworks Solutions Inc. Si571 10 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571BDA000282DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA000399DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA000400DGR Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA001517DGR Skyworks Solutions Inc. Si571 433.5 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA001606DGR Skyworks Solutions Inc. Si571 77.76 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BDA001752DGR Skyworks Solutions Inc. Si571 142.8 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571BFA000112DG Skyworks Solutions Inc. Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
    571MDA000265DG Skyworks Solutions Inc. Si571 1.3 GHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA000133DG Skyworks Solutions Inc. Si571 500 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    571ADA000803DG Skyworks Solutions Inc. Si571 148.351648 MHz LVPECL 2.97V ~ 3.63V ±50ppm
    公司：深圳市亿金电子有限公司
    SHENZHEN YIJIN ELECTRONICS CO;LTD
    电话：0755-27876565
    手机：18924600166
    QQ：857950243
    邮箱：yijindz@163.com
    网站：http://www.yijindz.com
    地址：广东省深圳市宝安区新安107国道旁

    相关产品

    首 页|国产晶振|进口晶振|欧美晶振|有源晶振|亿金路程|人才招聘|常见问题|客户留言|网站地图|在线问答|RSS订阅|联系亿金
    Copyright © 1996-2012 亿金电子 版权所有
    电话：+86-0755-27876565 手机:18924600166　MSN:yijindz@msn.cn
    E-mail：yijindz@163.com QQ:857950243
    网站:www.yijindz.com
    地址：深圳市宝安区新安107国道旁甲岸路
    粤ICP备17105583号-2
    诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴：
    深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
    石英晶振,贴片晶振,32.768K晶振,SC-32S精工晶振,SSP-T7精工晶振,SC-20S精工晶振,DST310SKDS晶振,MC-146爱普生晶振,FC-135爱普生晶振,2X6KDS晶振,差分晶振,2520温补晶振,有源贴片晶振,压控晶体振荡器,315M声表面滤波器,F11-315声表面滤波器,CSTCR-G15村田陶瓷晶振,CSTCR-G15村田陶瓷晶振,110K微孔雾化片,16mm陶瓷雾化片,1.7M雾化片,加湿器雾化片,进口晶振,陶瓷晶振,
    kf
    kf
    close
    kf 亿金微信号
