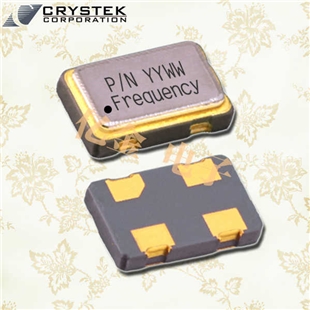

Crystek晶振,C32xx时钟晶体振荡器,C3292-26.000MHz有源晶体，小型SMD有源晶振,从最初超大体积到现在的7050mm,6035mm,5032mm,3225mm,2520mm体积,有着翻天覆地的改变,体积的变小也使产品带来了更高的稳定性能,接缝密封石英晶体振荡器,精度高,覆盖频率范围宽的特点,SMD高速自动安装和高温回流焊设计,Optionable待机输出三态输出功能,电源电压范围:1.8V~5V,高稳定性,低抖动,低功耗,主要应用领域:无线通讯,高端智能手机,平板笔记本WLAN,蓝牙,数码相机,DSL和其他IT产品的晶振应用,三态功能,PC和LCDM等高端数码领域,符合RoHS/无铅.

Frequency Range:                      1.544 MHz to 100.000 MHz

Frequency Stability Options:          ±20*, ±25, ±50, ±100 (ppm)

Temperature Range: (standard)    0°C to +70°C                       (Option “M”)       -20°C to +70°C                       (Option “E”*)       -40°C to +85°C

Storage Temperature:     -45°C to 90°C

Input Voltage:                5.0V ±0.5V

Input Current:                60mA Max

Standby Current:            10uA Max

Output:                        HCMOS

Symmetry:      (Standard “2”)         40/60% Max @ 50% Vdd         (Option “9”)         45/55% Max @ 50% Vdd      Rise/Fall Time:         6ns Max @ 20% to 80% Vdd                 Logic:         "0" = 10% Vdd Max                                 "1" = 90% Vdd Min       Disable Time:         200ns Max     Start-up Time:          10ms Max                 Load:          30pF Max

Jitter RMS: 12kHz~20MHz   0.5ps Typical, 1ps Max

Sub-harmonics:              None

Aging:                            <3ppm 1st year, 1ppm every year thereafter
