首页进口晶振E3SB26E000202E,便携式设备晶振,3225台产鸿星晶振

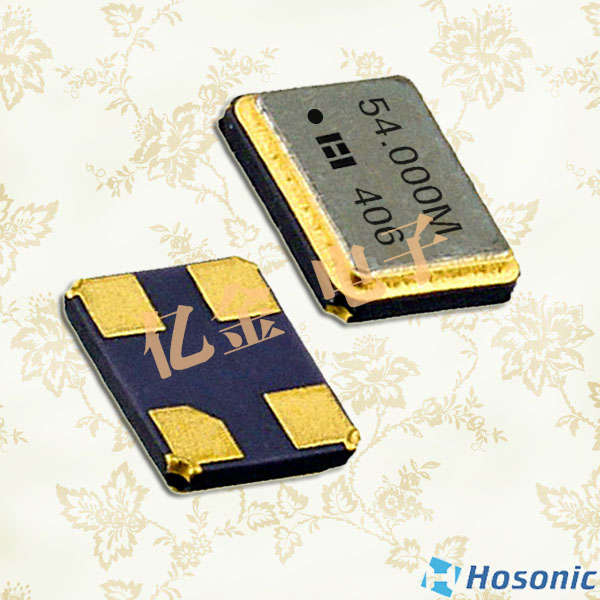

E3SB26E000202E,便携式设备晶振,3225台产鸿星晶振

频率：26.000MHZ
尺寸：3225mm
应　用： E3SB26E000202E,便携式设备晶振,3225台产鸿星晶振,可灵活嵌入PCB板狭小空间,支持自动贴装与回流焊工艺,大幅提升批量生产效率.在蓝牙5.2,WiFi6等无线通信模块中,其稳定的频率输出能优化信号同步性能,降低数据传输误码率...

E3SB26E000202E,便携式设备晶振,3225台产鸿星晶振

源自中国台湾鸿星的E3SB26E000202E晶振,以3225标准贴片封装为基础,精准匹配便携式设备的轻量化,小型化设计需求.助力延长蓝牙耳机,智能手环等电池供电设备的续航时长.相较于进口同类型晶振,该型号在保持核心性能不缩水的前提下,具备更亲民的价格与稳定的供货周期,同时通过严苛的品质检测,抗电磁干扰能力突出,能适配日常便携场景中的复杂使用环境,是消费类便携式电子产品的高性价比时钟源之选.

E3SB26E000202E,便携式设备晶振,3225台产鸿星晶振

原厂型号 Originalmodel：	E3SB26E000202E	品牌brand：	Hosonic
品牌brand：	鸿星HOSONIC晶振	高度PackageHeight：	0.75mm
型号名称 Modelname：	E3SB	温度OperatingTemperature	-20+75℃
Type系列：	MHz Crystal	脚位Termination：	4-pad
频率 frequency：	26M	封装类型PackageType：	4-smd
frequencytolerance频率容差	10PP	最小包装数MPQ：	3000
Loadcapacitance 负载电容	9PF	Packaging 包装	TapeandReel

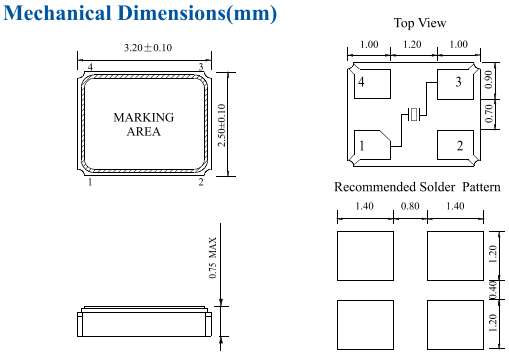

Size/Dimension尺寸	3225mm	安装方式 Installation：	Surfacemount

E3SB26E000202E,便携式设备晶振,3225台产鸿星晶振

E3SB25E00003FE	Hosonic鸿星晶振	E3SB	MHz Crystal	25 MHz	±15ppm	±15ppm	18pF
E3SB24E004000E	Hosonic鸿星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
E3SB32E001500E	Hosonic鸿星晶振	E3SB	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
E3SB37E0X0004E	Hosonic鸿星晶振	E3SB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
E3SB25E001803E	Hosonic鸿星晶振	E3SB	MHz Crystal	25 MHz	±20ppm	±20ppm	12pF
E3SB16E0X000WE	Hosonic鸿星晶振	E3SB	MHz Crystal	16.384 MHz	±10ppm	±10ppm	10pF
E3SB27E0X000VE	Hosonic鸿星晶振	E3SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	10pF
E3SB27E00000DE	Hosonic鸿星晶振	E3SB	MHz Crystal	27 MHz	±10ppm	±10ppm	10pF
E3SB50E00000AE	Hosonic鸿星晶振	E3SB	MHz Crystal	50 MHz	±10ppm	±10ppm	18pF
E3SB26E000011E	Hosonic鸿星晶振	E3SB	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF
E2SB40E000104ECBB8	Hosonic鸿星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	12pF
E2SB38E0X0300E	Hosonic鸿星晶振	E2SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
E3SB8E0000003E	Hosonic鸿星晶振	E3SB	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
E2SB40E000107E	Hosonic鸿星晶振	E2SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E2SB40E00010AE	Hosonic鸿星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	7pF
E1SB24E00001EE	Hosonic鸿星晶振	E1S	MHz Crystal	24 MHz	±30ppm	±30ppm	18pF
E1SB26E007902E	Hosonic鸿星晶振	E1SB	MHz Crystal	26 MHz	±15ppm	±10ppm	9pF
E3SB24E00000QE	Hosonic鸿星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
E3SB40E00010JE	Hosonic鸿星晶振	E3SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E3SB12E000022E	Hosonic鸿星晶振	E3SB	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
E3SB16E000028E	Hosonic鸿星晶振	E3SB	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF
E3SB40E00090DE	Hosonic鸿星晶振	E3SB	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF
E3SB38E0X0006E	Hosonic鸿星晶振	E3SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E3SB40E00010KECBB8	Hosonic鸿星晶振	E3SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF
E3SB39E000006E	Hosonic鸿星晶振	E3SB	MHz Crystal	39 MHz	±15ppm	±8ppm	10pF
E3SB38E0X1806E	Hosonic鸿星晶振	E3SB	MHz Crystal	38.4 MHz	±20ppm	±20ppm	10pF
E3SB48E000801ECBB8	Hosonic鸿星晶振	E3SB	MHz Crystal	48 MHz	±10ppm	±10ppm	12pF
E3SB12E00004EE	Hosonic鸿星晶振	E3SB	MHz Crystal	12 MHz	±35ppm	±8ppm	12pF
E1SB60E003701E	Hosonic鸿星晶振	E1S	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF
E1SB55E0X0002E	Hosonic鸿星晶振	E1SB	MHz Crystal	55.2 MHz	±10ppm	±10ppm	10pF
E2SB27E0X0000E	Hosonic鸿星晶振	E2SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	8pF
E2SB24E001801E	Hosonic鸿星晶振	E2SB	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
E2SB40E000108E	Hosonic鸿星晶振	E2SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF
ETSB37E0X0014E	Hosonic鸿星晶振	ETSB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
ETSB38E0X0005E	Hosonic鸿星晶振	ETSB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E1SB24E000007E	Hosonic鸿星晶振	E1SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
E1SB25E000009E	Hosonic鸿星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	6pF
E1SB24E004000E	Hosonic鸿星晶振	E1S	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
E1SB38E0X0001E	Hosonic鸿星晶振	E1S	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E1SB39E000000E	Hosonic鸿星晶振	E1SB	MHz Crystal	39 MHz	±13ppm	±8ppm	10pF
E1SB40E00090AECBB8	Hosonic鸿星晶振	E1S	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF
E1SB48E000506E	Hosonic鸿星晶振	E1S	MHz Crystal	48 MHz	±16ppm	±8ppm	11.1pF
E1SB25E001000E	Hosonic鸿星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	18pF
E1SB32E007900E	Hosonic鸿星晶振	E1SB	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
E1SB32E001502E	Hosonic鸿星晶振	E1SB	MHz Crystal	32 MHz	±20ppm	±10ppm	12pF
E2SB12E000005E	Hosonic鸿星晶振	E2SB	MHz Crystal	12 MHz	±20ppm	±20ppm	12pF
E1SB37E0X0002E	Hosonic鸿星晶振	E1S	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
E1SB32E001501ECBB8	Hosonic鸿星晶振	E1S	MHz Crystal	32 MHz	±10ppm	±10ppm	9pF
E1SB16E000004E	Hosonic鸿星晶振	E1SB	MHz Crystal	16 MHz	±10ppm	±10ppm	8pF
ETSB24E000003E	Hosonic鸿星晶振	ETSB	MHz Crystal	24 MHz	±10ppm	±10ppm	8pF
ETSB48E007500ECBB8	Hosonic鸿星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF
ETSB48E007502E	Hosonic鸿星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF
ETSB32E000003E	Hosonic鸿星晶振	ETSB	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
ETSB60E003700E	Hosonic鸿星晶振	ETSB	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF
E3SB14E0X0002E	Hosonic鸿星晶振	E3SB	MHz Crystal	14.7456 MHz	±30ppm	±30ppm	12pF
E3SB10E000007E	Hosonic鸿星晶振	E3SB	MHz Crystal	10 MHz	±30ppm	±30ppm	12pF
E3SB25E00000DE	Hosonic鸿星晶振	E3SB	MHz Crystal	25 MHz	±10ppm	±10ppm	10pF
E3FB24E00000KE	Hosonic鸿星晶振	E3FB	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF
E3SB48E00000TE	Hosonic鸿星晶振	E3SB	MHz Crystal	48 MHz	±30ppm	±30ppm	18pF
E3SB50E00002AE	Hosonic鸿星晶振	E3SB	MHz Crystal	50 MHz	±18ppm	±7ppm	9pF
